Workpiece pallet WT 2/E
Specifications
- Delivery information Fully assembled
- Dimension [c] 125 mm
- Flatness 1 mm
- Height 30 mm
Welcome to Gavilion
-
Malaysia
- Login / Register
Browse Categories
Workpiece pallet TS 2plus
Workpiece pallet WT 2
Workpiece pallet WT 2/H
Specifications
- Delivery information Mounted (MT = 1),Kit, not mounted (MT = 0), Parts kit without carrying plate,Not assembled
- ESD Yes
- Material information Carrying plate: Aluminum,Corner module and slider with PE (= polyethylene) wear pad, PE wear pad
- Recommended accessories 2 x positioning bushing kit WT 2/H (LE 2). When using a PE 2/H positioning unit, positioning bushings are required.
Downloads

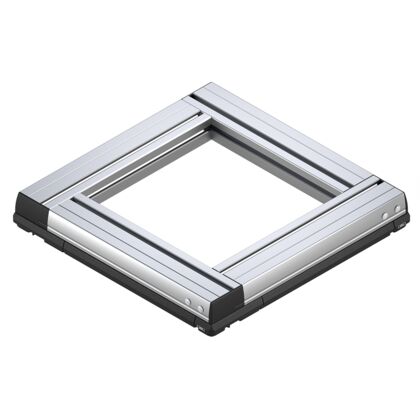

Workpiece pallet WT 2/F
Specifications
- Delivery information Mounted (MT = 1),Kit, not mounted (MT = 0)
- Kit [MT] 0 = unmontiert,1 = montiert
- Scope of delivery Frame modules,Connection elements,Positioning bushings
- Workpiece pallet length [lWT] 4004806408001040
Downloads

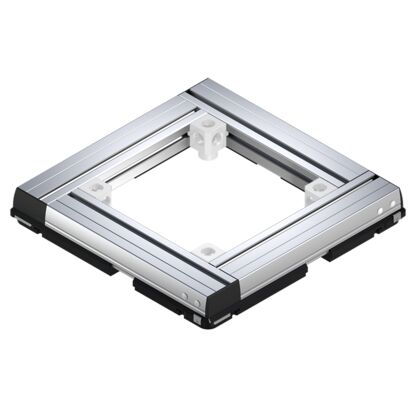

Workpiece pallet WT 2/F-H
Specifications
- Delivery information Mounted (MT = 1),Kit, not mounted (MT = 0)
- ESD Yes
- Kit [MT] 0 = unmontiert,1 = montiert
- Material information Frame module with PE (= polyethylene) wear pad
Downloads

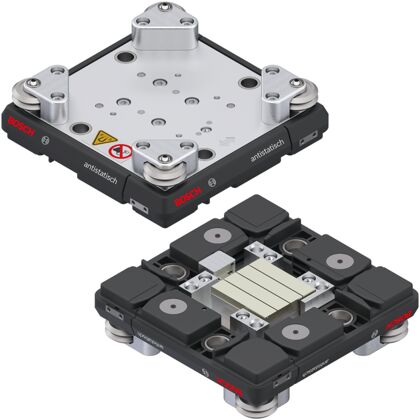

Workpiece pallet WT 2/LS
Specifications
- Delivery information Assembled, individually packed with magnetic cover
- Dimension [a] 1.1 mm, 9.3 mm, 9.31 mm
- Dimension [b] 88 mm, 168 mm, 248 mm, 568 mm
- Dimension b 23.1, 29.01
Downloads
Standard frame module
Specifications
- Height 25 mm, 27 mm, 28 mm, 30 mm
- Length 155…400 mm
- Width 40 mm, 41 mm, 42 mm
- Workpiece pallet weight [mG] 50 kg
Downloads
Reinforced frame module
Specifications
- Workpiece pallet weight [mG] 100 kg
- Height 30 mm
- Length 235 mm, 350 mm
- Length [L] 320 mm
Downloads
Positioning bushing
Specifications
- Height 14.8 mm, 18 mm, 23 mm, 31 mm, 80 mm
- Length 20 mm, 34 mm, 165 mm
- Material Steel, Steel, hardened
- Required accessories Positioning bushings are required if a PE 2/H positioning unit is used, Press-Fit Mandrel
Downloads
Press-fit mandrel
Specifications
- Height 30 mm
- Length 240 mm
- Material Steel, hardened
- Packaging unit 1
Downloads
Dowel pin
Bolt
Specifications
- Delivery unit 1
- Dimension [a] 4.8 mm, 8 mm, 12.7 mm
- Height 24 mm, 27 mm, 32 mm
- Length 16 mm
Downloads
Carrying plates
Specifications
- Flatness 0.3 mm, 0.5 mm, 0.6 mm, 0.8 mm, 1 mm, 1.2 mm
- Height 4.8 mm, 5 mm, 8 mm, 10 mm, 12.7 mm, 15 mm
- Length 154.8…1194.8 mm
- Material Aluminum, Steel
