Components of positioning units
Specifications
- Height 49 mm
- Length 149 mm
- Required accessories PE 2 Positioning Unit,Sensor M12 with rated sensing range S<sub>N</sub> = 4 mm
- Width 94 mm
Welcome to Gavilion
-
Malaysia
- Login / Register
Browse Categories
Positioning and orientation TS 2plus

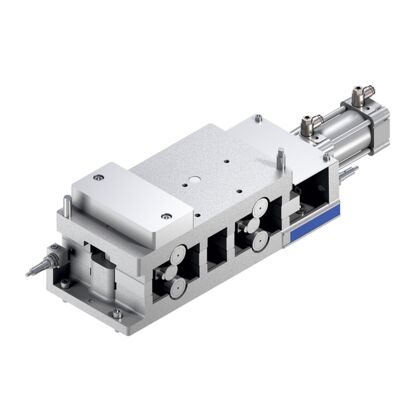

Components of positioning unit PE 2/XP
Specifications
- Height 30 mm, 39 mm
- Length 12 mm, 80 mm, 160 mm, 240 mm
- Width 12 mm, 80 mm, 160 mm
- Length [l] 30 mm, 39 mm
Downloads
Components of positioning unit PE 2/XX
Specifications
- ESD Yes
- Height 26 mm, 80 mm
- Length 20 mm, 39 mm, 80 mm
- Packaging unit Set, Set (2)
Downloads

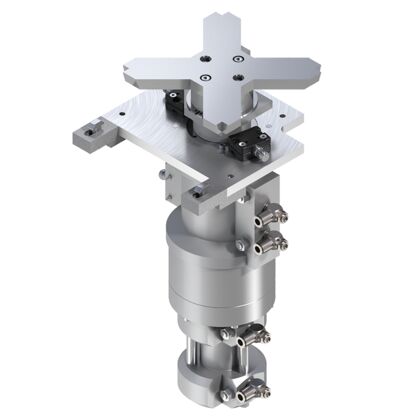

Lift rotary units
Specifications
- Required accessories Stop gate VE 2/...,M12x1 Sensor with Rated Sensing Range of S<sub>N</sub>≥ 4 mm, Cannot be Installed Flush, but Rather with 0.5 mm, Stop gate VE 2/...,Sensor M12x1 with rated switching distance S<sub>N</sub>≥ 4 mm, can be installed at 0.5 mm rather than being installed flush
- Scope of delivery Incl. fastening material
- Height 50 mm, 450 mm
- Length 100 mm, 180 mm, 260 mm, 400 mm
Downloads

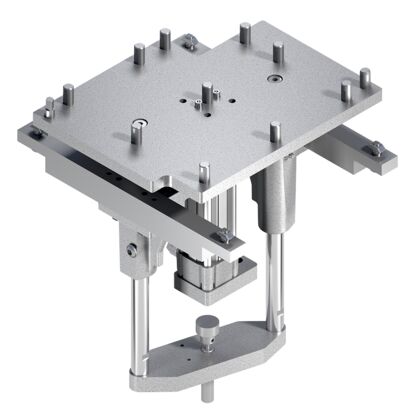

Lift positioning units
Specifications
- Delivery information Assembled, Fully assembled
- ESD Yes
- Length in direction of transport [lT] 1.6024032040048E+20, 160240320
- Notice Repetition accuracy applies only to lifts of up to 204 mm,Permissible vertical process forces incl. WT 2,HA = 1 only for b = 240 mm, Throttle check valve, exhaust air with push-in fitting, diameter ⌀ 6 mm, for thread G 3/8" must be attached by the customer,Permissible vertical process forces incl. WT 2,If the value is "0" at length in direction of transport [lT], HP 2 will be delivered with a lifting plate 3842516048 instead of the lift position plate for custom designing of the lift positioning plate, Throttle check valve, exhaust air with push-in fitting, diameter ⌀ 6 mm, for thread G 3/8" must be attached by the customer,Permissible vertical process forces incl. WT 2,If the value is "0" at length in direction of transport [lT], HP 2 will be delivered with a lifting plate 3842516048 instead of the lift positioning plate for self-construction of the positioning plate
Downloads
Components of lift positioning unit HP 2/L
Specifications
- Height 20 mm, 145 mm
- Length 140 mm, 315 mm, 535 mm, 715 mm
- Width 80 mm, 205 mm
- Length [L] 315 mm, 535 mm, 715 mm
Downloads

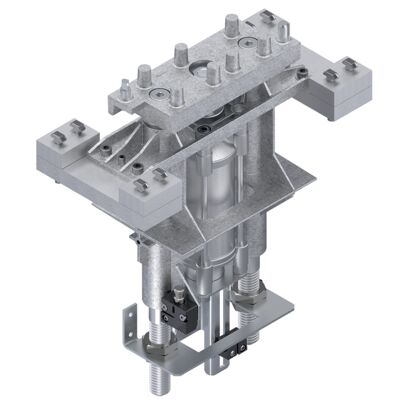

Components of lift positioning unit HP 2
Specifications
- Length [L] 267 mm, 312 mm, 362 mm, 412 mm, 462 mm, 512 mm, 562 mm, 612 mm
Downloads

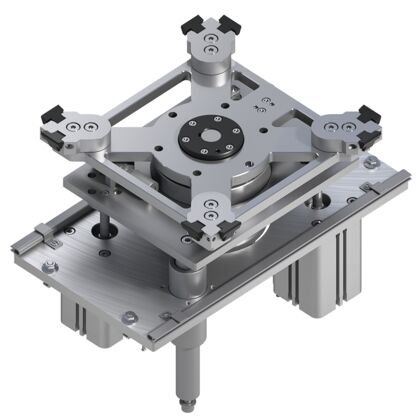

Lift rotary unit HD 2/H
Specifications
- Delivery information Fully assembled
- ESD Yes
- Length in direction of transport [lT] 80010401200, 240320400480, 4004806408001040
- Lift of WT over conveyor medium [h0] 50
Downloads

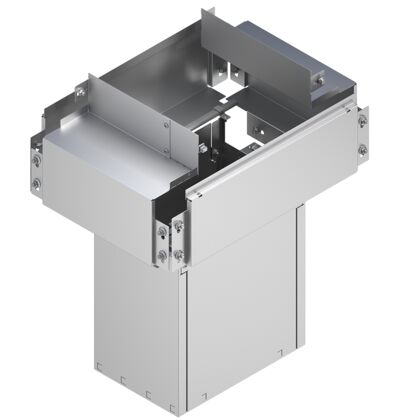

Components of lift rotary unit HD 2/H
Specifications
- Workpiece pallet length [lWT] 240, 320, 400, 480, 640, 800, 1040, 1200
- Workpiece pallet width [bWT] 240, 320, 400, 480, 640, 800, 1200
- Height 400 mm, 450 mm, 500 mm, 550 mm, 600 mm, 650 mm
- Length 550 mm, 630 mm, 680 mm, 840 mm, 1190 mm
Downloads

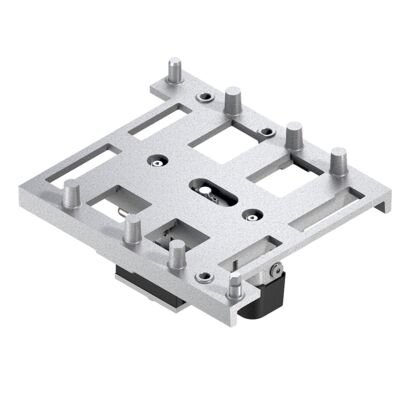

Positioning units TS 2plus
Specifications
- Delivery information Assembled, Fully assembled
- ESD Yes
- Length in direction of transport [lT] 160, 240, 320, 400, 48064080010401200
- Lift of WT over conveyor medium [h0] 3, 25
Downloads
Workpiece pallet inner guide
Specifications
- Delivery information Not assembled
- ESD Yes
- Length [L] 45 mm, 150 mm, 300 mm, 450 mm, 600 mm
- Material Steel, stainless
