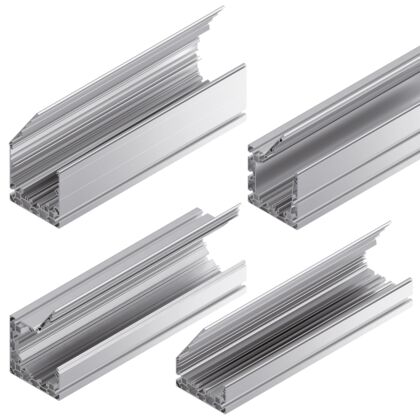

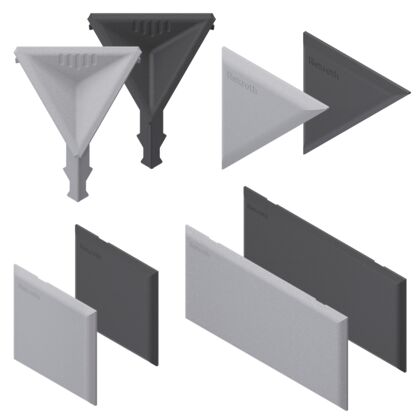

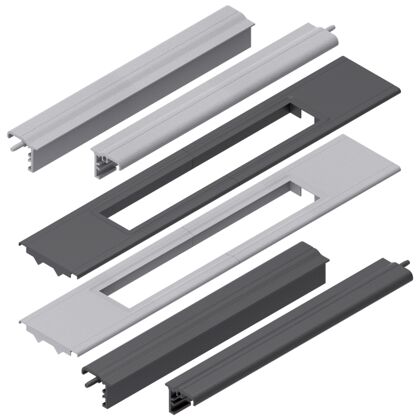

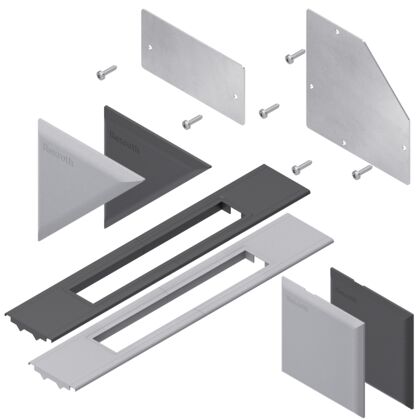

Function-integrated profiles
Base plates for function-integrated profiles
Specifications
- ESD Yes
- Height 12 mm
- Length 120.6 mm, 121 mm
- Material Steel, galvanized
Downloads
Cable hole
Specifications
- Packaging unit 10
- Material PP
- Dimensions 80, 120
- Width 20 mm, 25 mm
Downloads
Edge protector
Specifications
- Material PP
- Packaging unit 10
- Height 5 mm
- Length 87 mm
Downloads
Positioning pin
Specifications
- Color Signal gray (RAL 7004)
- Diameter D 5.7 mm
- Height 5.4 mm
- Length 8.8 mm
Downloads

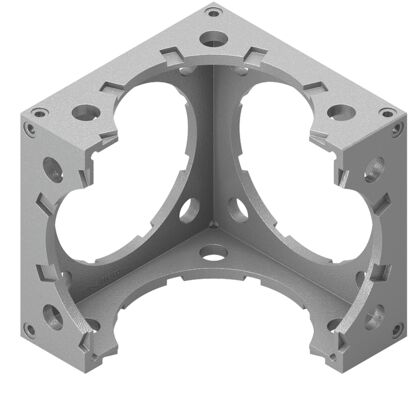

Profile joint
Specifications
- Recommended accessories Edge protector to cover sharp edges,Cover cap for closing openings,Connection bracket for covering sharp edges and for fastening cover caps,Caps, Edge protector to cover sharp edges,Cover cap for closing openings,Spacer for fastening cover caps,Caps
- Length 120 mm
- Color Signal gray (RAL 7004)
- Packaging unit 1
Downloads
Protective hose
Specifications
- Length 2000 mm
- Condition on delivery Single rod in standard length
- Color Black
- Delivery unit 1
Downloads
Dividing strip
Specifications
- Height 80 mm, 3000 mm
- Length 28 mm, 87 mm, 3000 mm
- Material PVC
- Length [L] 3000 mm
Downloads

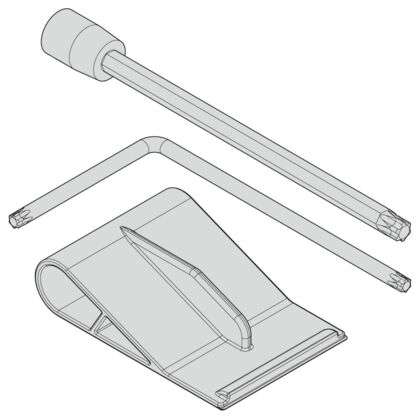

Tools
Specifications
- Packaging unit 1, 5
- Length 119 mm, 1210 mm
- Height 9 mm, 29.5 mm
- Width 80 mm, 209 mm
Downloads
Spacers
Specifications
- Material information Cover: PP signal gray (RAL 7004)
- Dimensions 20 x120
- Packaging unit 5
Downloads
Potential equalizer line
Specifications
- Material information Cable: plastic-coated,Fastening material: Steel, galvanized
- Packaging unit 1
- Delivery unit 1
Downloads
Cable guide profile
Specifications
- Material Aluminum, anodized
- Recommended accessories Self-tapping screw (3 842 552 267) to secure the cover,Potential equalizer line (3 842 552 234)
- Condition on delivery Packaging unit in standard length, Profile finishing, Variable length
- Open slots 2, 6
Downloads
Cover caps function-integrated profiles
Specifications
- Width 56 mm, 60 mm, 120 mm
- Material PP
- Length 56 mm, 60 mm, 80 mm, 120 mm
- Height 4 mm, 7 mm
Downloads
Cover rail
Specifications
- Packaging unit 10
- Material PP
- Dimensions 80, 120
- Width 17 mm
Downloads
Cover
Specifications
- Width 17 mm
- Height 80 mm, 120 mm
- Dimensions 80, 120
- Packaging unit 10
Downloads
cover plate
Specifications
- Length 121 mm
- Fastening material 2 x screw DIN7500-PE M4X8, 4 x screw DIN7500-PE M4X8
- ESD Yes
- Dimensions 40x120x120, 60x120, 120x120
