Cam roller guides

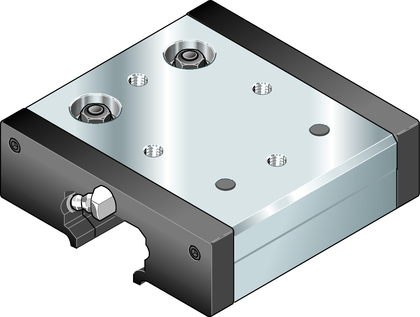

Cam roller guides from Rexroth were developed especially for handling and automation technology. With their compact design, very low weight, low friction and extremely quiet running, they make excellent use of their special features. Their main advantage lies in their unbeatable dynamics, as the smooth running of our cam roller runner blocks allows extremely high speeds.

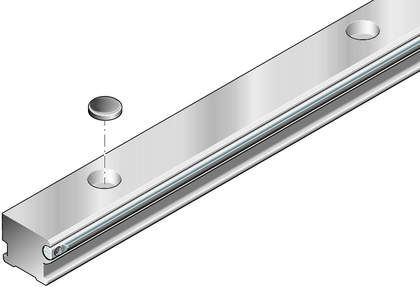

Cam roller guide rails
Specifications
- Dimension 2nd grade area moment, y-axis ly 1913…119636 mm⁴
- Dimension 2nd grade area moment, z-axis lz 3090…2378777 mm⁴
- Dimension A (profiled rail systems) 17 mm, 20 mm, 25 mm, 26 mm, 32 mm, 42 mm, 52 mm, 120 mm
- Dimension H 10 mm, 12 mm, 15 mm, 18 mm, 20 mm, 25 mm, 34 mm

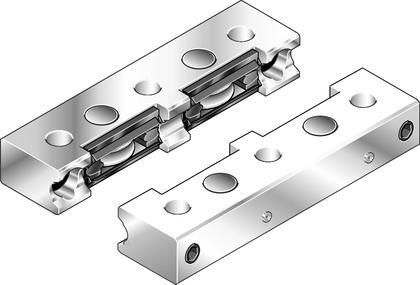

Bearings with adjusting screws
Specifications
- Dimension A (profiled rail systems) 31 mm, 44.5 mm, 52 mm, 57 mm
- Dimension A1 (profiled rail systems) 43 mm, 65 mm, 72.5 mm, 77.5 mm
- Dimension A2 (profiled rail systems) 2 mm
- Dimension B (profiled rail systems) 87 mm, 104 mm, 118.5 mm, 123.5 mm, 129 mm, 159 mm, 184.5 mm, 194.5 mm

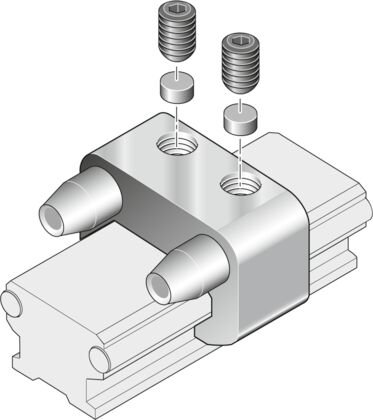

Accessories for cam roller guides
Specifications
- Accessories for Guide rail, Runner Block
- Dimension H1 (profiled rail systems) 7, 11, 15.9, 19, 26.25, 29, 42
- Dimension H2 (profiled rail systems) 8.5 mm, 12.5 mm, 13 mm, 17.9 mm, 18 mm, 21 mm, 35.8 mm
- Dimension H4 16 mm, 17.4 mm, 18.8 mm, 25.5 mm, 36.5 mm, 44.3 mm
