VarioFlow plus aluminum system

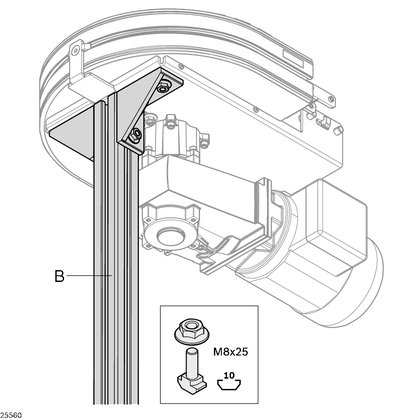

Leg sets AL, curve wheel drive

Specifications

• Material Aluminum, anodized, Aluminum, painted, Diecast aluminum, vibratory ground, Diecast aluminum, vibratory ground and painted, PP
• Height 14 mm, 40 mm, 130 mm, 400 mm
• Length 60 mm, 100 mm, 190 mm, 220 mm, 6200 mm
• Profile slot 10

Downloads

• Data Sheet
• CAD

Products

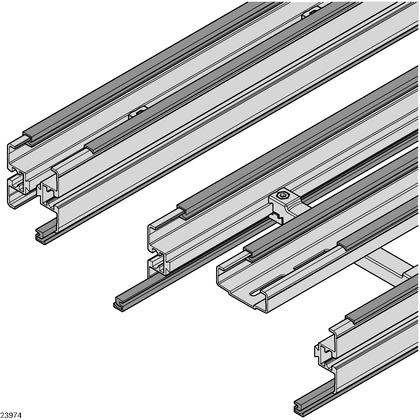

Section AL, sliding rail

Specifications

• Height 1.7 mm, 11.5 mm, 12 mm, 13 mm, 150 mm
• Length 9.5…30000 mm
• Packaging unit 1, 100
• Size [b] 65, 90, 120, 6590120160240320

Downloads

• Data Sheet

Products

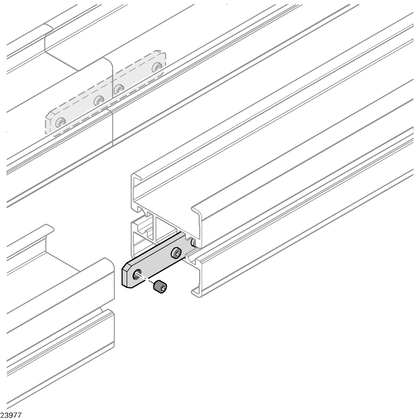

Section AL, profile connector

Specifications

• Delivery information Screws pre-assembled and secured
• Material Steel, galvanized
• Packaging unit 10, Set
• Scope of delivery Complete, Complete (set contains two profile connectors)

Downloads

• Data Sheet

Products

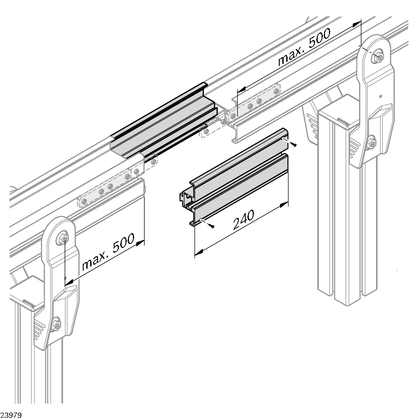

Section AL, assembly module

Specifications

• Actual chain length 2 x 0,24
• Color Natural
• Delivery information In single parts
• Effective sliding rail length 4 x 0,24; 6x 0,24

Downloads

• Data Sheet
• Manual

Products

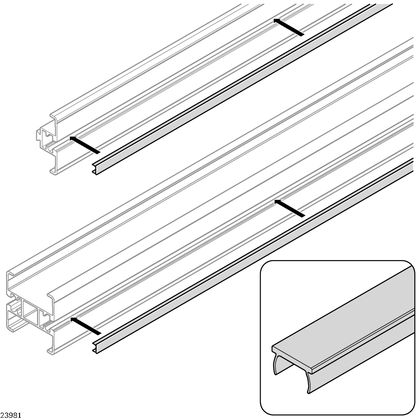

Section AL, cover profile

Specifications

• Color Blue (RAL 5010), Colorless, natural, Colorless, transparent, Green (RAL 6032), Light gray (RAL 7035), Orange (RAL 2004), Red (RAL 3020), Yellow (RAL 1023)
• Length [L] 2000 mm
• Material Aluminum, anodized, Hard PVC
• Packaging unit 10

Downloads

• Data Sheet

Products

Section AL, connection elements

Specifications

• ESD Yes
• Height 8 mm, 8.5 mm, 8.8 mm, 10 mm, 26 mm, 28 mm, 50 mm
• Length 19.6 mm, 20 mm, 21 mm, 30.5 mm, 35.5 mm, 45.5 mm, 55.5 mm, 105 mm
• Material Steel, galvanized

Downloads

• Data Sheet

Products

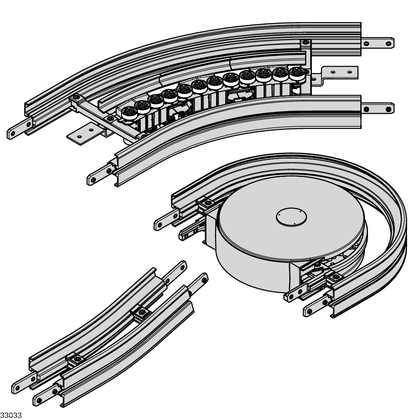

Curve AL

Specifications

• Height 30…320 mm
• Length 110…920 mm
• Size [b] 65, 90, 120, 160, 240, 320, 6590120
• Width 22…1320 mm

Downloads

• Data Sheet

Products

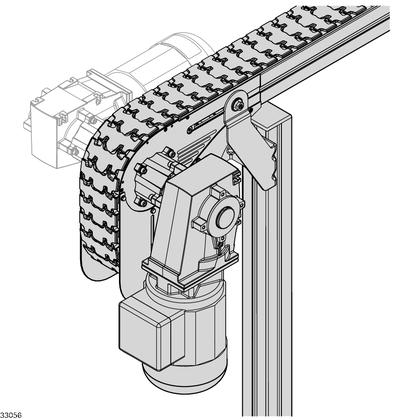

Drive and return unit AL

Specifications

• Height 30…485.4 mm
• Length 67…814 mm
• Size [b] 65, 90, 120, 160, 240, 320, 160240320, 6590120160240320
• Width 68…421 mm

Downloads

• Data Sheet
• Manual
• Safety Instruction

Products

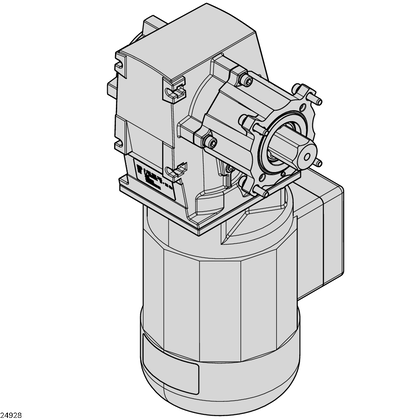

Drive and return unit AL, drive kit

Specifications

• Delivery information Assembly kit
• Gear motor [GM] 0 = Schnittstelle SW27 ohne Getriebemotor,1 = Schnittstelle SW27 mit Getriebemotor hohes Drehmoment,2 = Schnittstelle SEW 47 ohne Getriebemotor,4 = Schnittstelle SEW SA37 ohne Getriebemotor, 0 = Schnittstelle SW27 ohne Getriebemotor,1 = Schnittstelle SW27 Lenze-Getriebemotor hohes Drehmoment,2 = Schnittstelle für SEW SA47 ohne Getriebemotor,3 = Schnittstelle SW17 niedriges Drehmoment,4 = Schnittstelle für SEW SA37 ohne Getriebemotor
• Material information Flange, shaft (STS): Non-rusting steel 1.4301,AL-STS motor: Diecast aluminum,Cover tube (STS): PE,Flange (AL): Diecast aluminum,Shaft (AL): Non-rusting steel 1.4301/PA,Ball catch coupling (AL): Steel, Flange: Diecast aluminum,Shaft: STS,Connecting sheet, cover sheet: Steel, galvanized,Ball catch coupling: Steel
• Modification Additional versions are available on request from our modification department. (COS@boschrexroth.de)

Downloads

• Data Sheet
• Manual
• Safety Instruction

Products

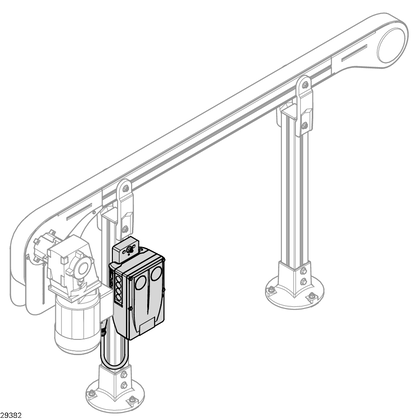

Drive and return unit AL, frequency converter

Downloads

• Data Sheet
• Manual

Products

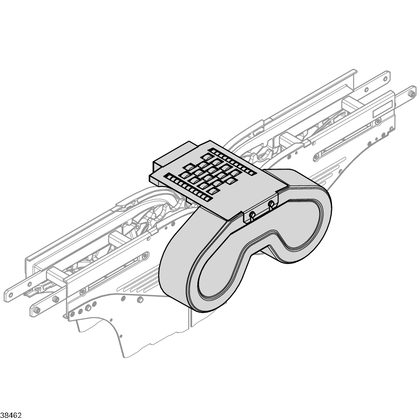

Drive and return unit AL, connection kit

Specifications

• Size [b] 65, 90, 120, 160, 6590120160240320
• Scope of delivery Incl. fastening material, Incl. fastening material, transmission and protective cover, Incl. fastening material,Transmission and protective cover
• Delivery information Not assembled, Partially assembled
• Material Aluminum/non-rusting steel 1.4301/PA/PE/ABS/PUR, Aluminum/stainless steel/PA/PE/ABS/PUR, Non-rusting steel 1.4301, Stainless steel 1.4301/POM

Downloads

• Data Sheet
• Manual
• Safety Instruction

Products

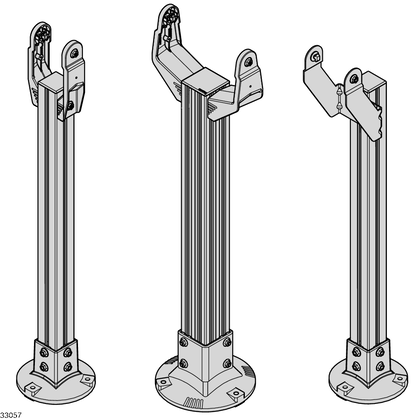

VarioFlow plus Leg sets AL

Specifications

• Material Aluminum, anodized, Aluminum, painted, Diecast aluminum, PP, Spring steel, stainless, Steel, galvanized, Steel, stainless
• Height 1…400 mm
• Length 30…6200 mm
• Width 8…360 mm

Downloads

• Data Sheet
• CAD

Products

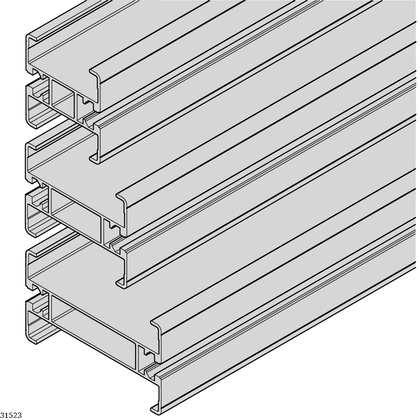

Section AL, section profile

Specifications

• Material Aluminum, anodized, Diecast aluminum
• Size [b] 65, 90, 120, 160, 240, 320, 160240320, 6590120160240320
• Area moment of inertia in x-direction [lx] 1.92 cm⁴, 11.22 cm⁴, 23.13 cm⁴, 24.4 cm⁴, 25.83 cm⁴
• Area moment of inertia in y-direction [ly] 3.45 cm⁴, 15.25 cm⁴, 45.81 cm⁴, 102.86 cm⁴, 206.79 cm⁴

Downloads

• Data Sheet

Products
