Air-supply elements

Seal

Specifications

• Height 4 mm, 7 mm
• Length 14 mm, 15 mm
• Material NBR
• Material thickness 4 mm, 7 mm

Downloads

• Data Sheet

Products

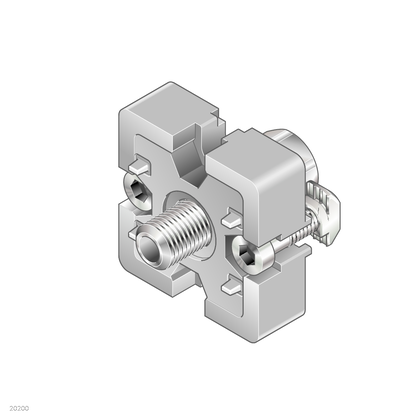

T-connector 45 Pneu

Specifications

• Fastening material 2 x cylinder head screw ISO4762-M6x18,2x T-nut groove 10 M6
• Height 40 mm
• Length 115 mm
• Material Diecast aluminum

Downloads

• Data Sheet
• Manual

Products

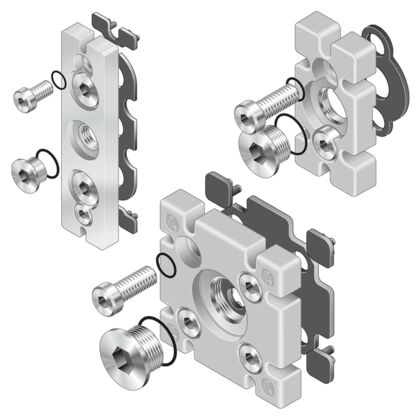

Flanged plate

Specifications

• Fastening material 2x cylinder head screw DIN7984-M12x30, 2x cylinder head screw DIN7984-M12x20, 4x cylinder head screw DIN7984-M12x30
• Height 40 mm, 50 mm, 65 mm
• Length 105 mm, 115 mm, 220 mm
• Material Aluminum, Diecast aluminum

Downloads

• Data Sheet

Products

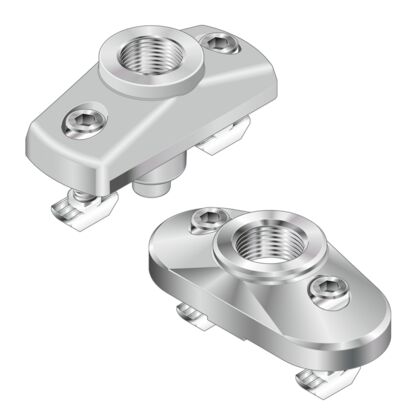

Connection piece

Specifications

• Fastening material 2 x cylinder head screw ISO4762-M6x16,2x T-nut groove 10 M6
• Height 20 mm, 40 mm
• Length 75 mm, 115 mm
• Material Diecast aluminum, Diecast zinc

Downloads

• Data Sheet
• Manual

Products

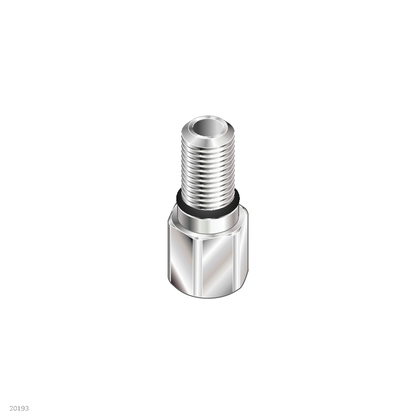

Connection screw fitting M12-1/4"

Specifications

• Height 35 mm
• Length 115 mm
• Material Steel
• Material information Connection screw fitting: Steel, galvanized,Seal: PVC, hard

Downloads

• Data Sheet

Products

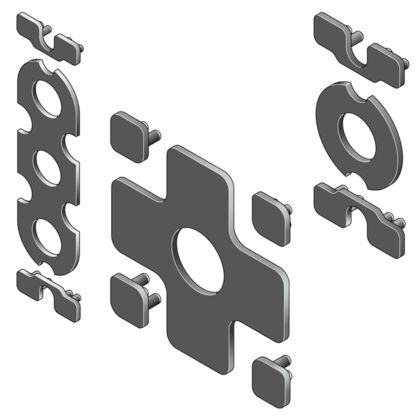

Longitudinal end connection

Specifications

• Height 10 mm, 15 mm
• Length 70 mm, 120 mm, 170 mm
• Material information Seal: NBR,Spacer: PA, Seal: PUR,Spacer: PA
• Packaging unit 1

Downloads

• Data Sheet

Products

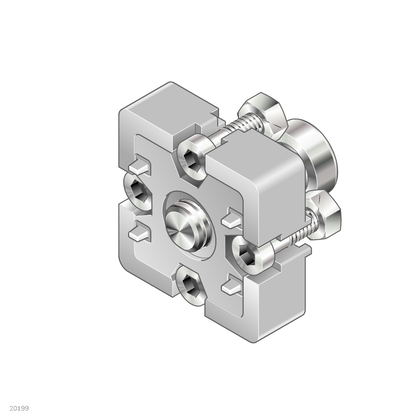

Longitudinal end connector 45 Pneu

Specifications

• Fastening material 4 x cylinder head screw ISO4762-M6x20,4x hexagon nut ISO4032-M6,2x screw M12x30
• Height 40 mm
• Length 115 mm
• Material Diecast aluminum

Downloads

• Data Sheet
• Manual

Products
