Miniature ball rail systems

The miniature version of the ball rail systems was specially developed for compact applications in the fields of medical and automation technology and the electrical industry. Ball bearing linear guide systems with extremely small dimensions but high load-bearing capacity are required in these sectors in particular. Our products offer outstanding performance in these sizes. Thanks to the equally high load capacities of the guide units in all four main directions of loadings, this system optimally meets the very special requirements in these production segments.

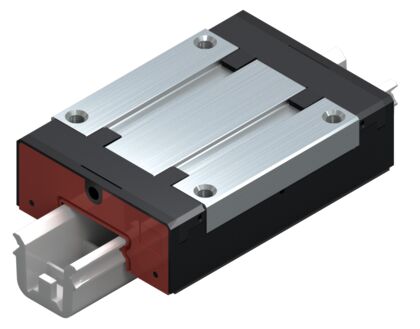

Miniature ball runner block

Specifications

Note: static load capacity C0 Calculated values acc. to DIN 636, part 2
Seal LS - Low-friction seal (mini), NS - N and longitudinal seal, NS - N seal
Dynamic load capacity C100 860…7900 N
Height runner block with guide rail 8 mm, 10 mm, 12 mm, 13 mm, 14 mm, 16 mm, 25 mm

Downloads

Products

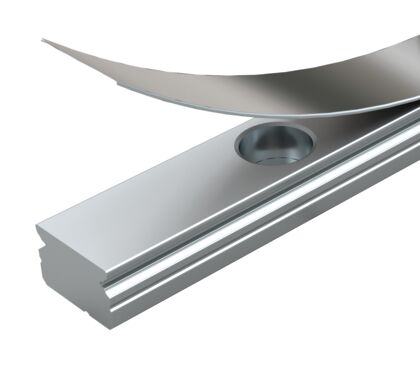

Miniature ball guide rails

Specifications

Dimension T 15 mm, 20 mm, 25 mm, 30 mm, 40 mm, 60 mm
Guide rail cover With cover strip, Without cover strip
Mass m (kg/m) 220 kg/m, 330 kg/m, 610 kg/m, 920 kg/m, 970 kg/m, 1450 kg/m, 2110 kg/m, 2860 kg/m
Dimension D 4.3 mm, 6 mm, 8 mm, 9.5 mm
