S20 (IP20)

S20 in protection class IP20 is the flexibly scalable I/O toolkit for shortest cycle times as well as the highest precision and ensures a real-time data flow between the control and peripherals – whether locally on the XM control or as a decentralized I/O station.

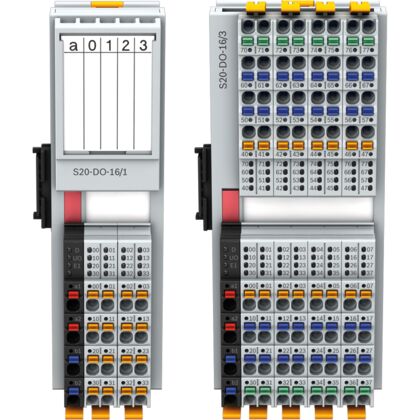

Digital Output Modules

Digital Output Modules

Specifications

International protection code IP20
Connectivity technology 1-wire technique, 2-wire, 3-wire technique, 2-wire technique
Permissible air humidity (storage) 5 -95
Ambient temperature (storage and transport) -40 -85

Downloads

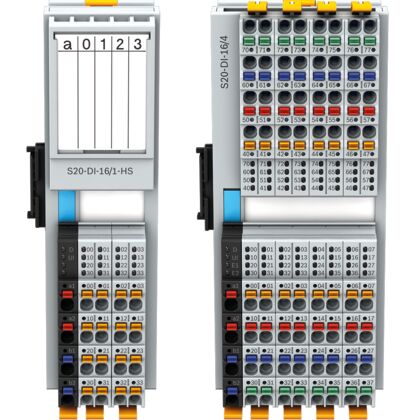

Digital Input Modules

Digital Input Modules

Specifications

International protection code IP20
Number of channels 8, 16, 32, 64
Ambient temperature (during operation) -25 -60
Connectivity technology 1-wire technique, 2-wire, 3-wire and 4-wire technique

Downloads

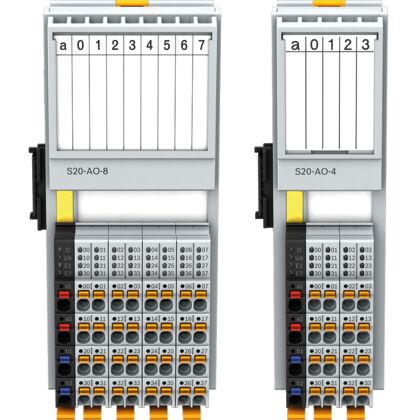

Analog Output Modules

Analog Output Modules

Specifications

Ambient temperature (storage and transport) -40 -85
Conductor cross-section rigid: 0.2-1.5 mm²,Flexible: 0.2-1.5 mm²,AWG: 24 ... 16
Height 54 mm
Permissible air humidity (transport) 5 -95

Downloads

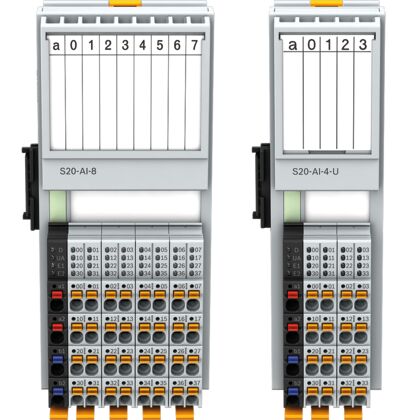

Analog Input Modules

Analog Input Modules

Specifications

Depth 126.1 mm
Logic voltage UBus 5 V DC
Permissible air humidity (transport) 5 -95
Height 54 mm

Downloads

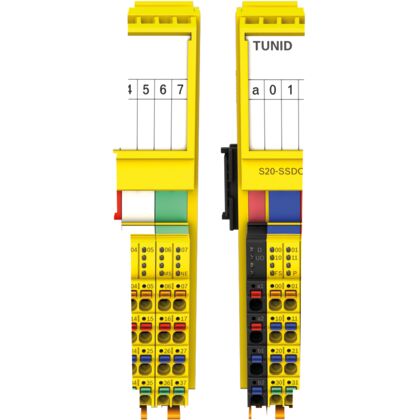

S20 Safety Modules

S20 Safety Modules

Specifications

Permissible air humidity (storage) 75 %
Height 54 mm
Logic voltage UBus 5 V DC
Conductor cross-section rigid: 0.5-1.5 mm²,Flexible: 0.25-1.5 mm²,AWG: 24 ... 16

Downloads

CAD

S20 System Modules

S20 System Modules

Specifications

Air pressure (operation) 70 -106 kPa (up to 3,000 m above sea level)
Logic voltage supply UL 24 V DC
Ambient temperature (storage and transport) -40 -85
Permissible air humidity (transport) 5 -95

Downloads

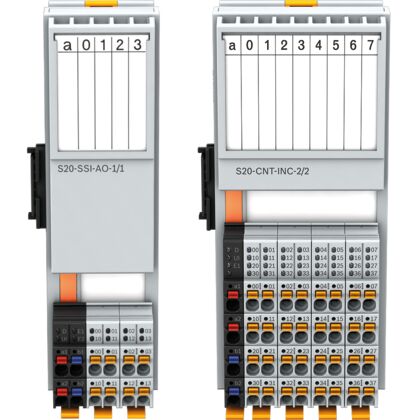

Function Modules

Function Modules

Specifications

Ambient temperature (storage and transport) -40 -85
Number of channels 1, 2, 4
Permissible air humidity (transport) 5 -95
Logic voltage UBus 5 V DC

Downloads

S20 Accessories

S20 Accessories

Specifications

International protection code IP20

Downloads

CAD

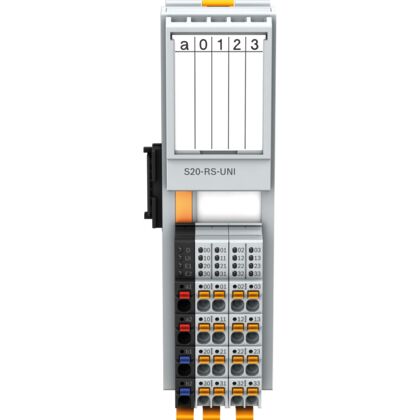

Communicaton Modules

Communicaton Modules

Specifications

Depth 126.1 mm, 129.9 mm
Conductor cross-section rigid: 0.2-1.5 mm²,Flexible: 0.2-1.5 mm²,AWG: 24 ... 16
International protection code IP20
Ambient temperature (storage and transport) -40 -85

Downloads

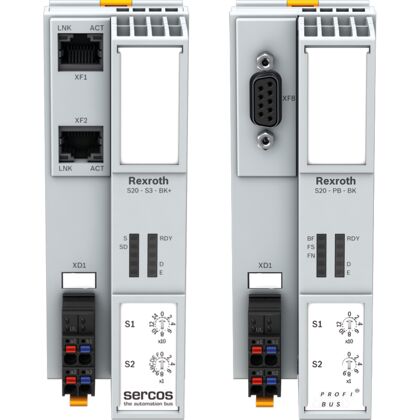

Fieldbus Couplers

Fieldbus Couplers

Specifications

Connection type Push-in
Depth 125.9 mm
Logic voltage supply UL 24 V DC
Permissible air humidity (transport) 5 -95

Downloads
