ctrlX I/O (IP20)
ctrlX I/O expands ctrlX AUTOMATION with standardized interfaces. The compact, modular setup saves up to 50% space in the control cabinet. Flexible and powerful with EtherCAT support and web-based configuration.
XI1 Digital Inputs
Specifications
- Ambient temperature during operation Up to 2,000 m: -25 °C to +55 °C,2,000 m to 3,000 m: -25 °C to +50 °C,3,000 m to 4,000 m: -25 °C to +45 °C,4,000 m to 5,000 m: -25 °C to +40 °C
- Backplane-Bus Standard-EtherCAT über LVDS
- Current requirement UL 30 mA
- Input current 2.4 mA
Downloads
XI2 Digital Outputs
Specifications
- Width 12 mm
- Height 105 mm
- Current requirement UL 22 mA, 25 mA, 35 mA
- Current requirement Up 15 mA + load, 25 mA, 30 mA + load
Downloads
XI3 Analog Inputs
Specifications
- Contamination level 2 , no condensation
- International protection code IP20
- Overvoltage category 2
- Maximum operating altitude 3000 m, 5000 m
Downloads
XI4 Analog Outputs
Specifications
- International protection code IP20
- Voltage supply UP via jumper contacts
- Width 12 mm
- Post-assembly position Vertical, on a horizontal support rail
Downloads

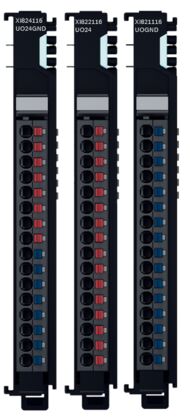

XI8 System Modules
Specifications
- International protection code IP20
- Permissible air humidity (storage) 10 -95
- Overvoltage category 2
- Post-assembly position Vertical, on a horizontal support rail
