Protective equipment and partition walls EcoSafe

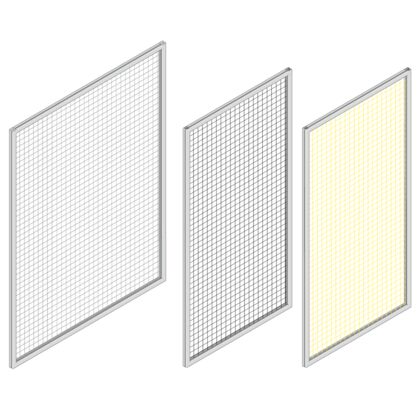

EcoSafe protective frame

Specifications

• Material information Frame: Aluminum, anodized,Fastening material: Steel galvanized. Grille: Steel, galvanized or powder-coated, Frame: Aluminum, anodized,Fastening material: Steel, galvanized grille: Steel, galvanized or powder-coated, Frame: Aluminum, anodized,Fastening material: Steel, galvanized; grille: Steel, galvanized or powder-coated, Frame: Aluminum, anodized,Fastening material: Steel, galvanized; grille: Steel, powder-coated black, Frame: Aluminum, anodized,Grille and fastening material: Steel, galvanized, Frame: Aluminum, anodized,Woven wire grille and fastening material: Steel, galvanized, Frame: Aluminum, anodized,Woven wire grille: Steel, hot-galvanized
• Delivery information Fully assembled
• Scope of delivery Fastening material, Protective frame, Protective frame,Fastening material
• Grille color [FA] Black, galvanized, black, yellow, Hot-galvanized, hot-galvanized, black, yellow

Downloads

• Data Sheet

Products

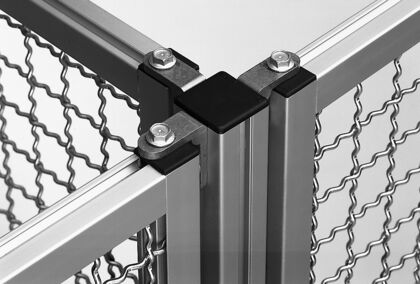

Accessories for EcoSafe

Specifications

• Material Aluminum, anodized, Diecast aluminum, Diecast zinc, PA 66, PP, Stainless steel, Steel, galvanized
• Packaging unit 1, 10, 20, 100
• Height 1…110 mm
• Length 21…20000 mm

Downloads

• Data Sheet

Products

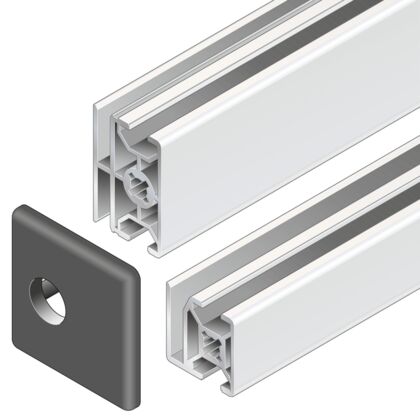

Protective grille profile WG30

Specifications

• Material Aluminum, anodized, PA, PP
• Height 10 mm, 30 mm, 45 mm, 245 mm, 270 mm, 291 mm
• Length 30 mm, 6170 mm, 6180 mm, 6200 mm
• Packaging unit 1, 20, 100

Downloads

• Data Sheet
• CAD

Products

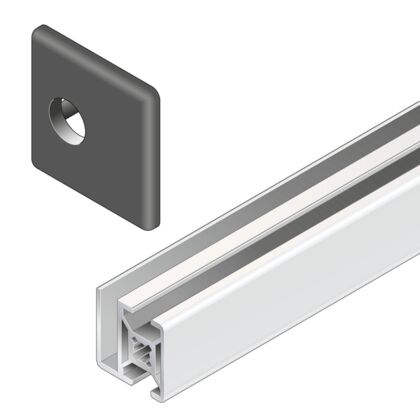

Protective grille profile WG40

Specifications

• Material Aluminum, anodized, PA, PP
• Packaging unit 1, 20, 100
• Height 10 mm, 30 mm, 45 mm, 291 mm
• Length 30 mm, 6170 mm, 6200 mm

Downloads

• Data Sheet
• CAD

Products

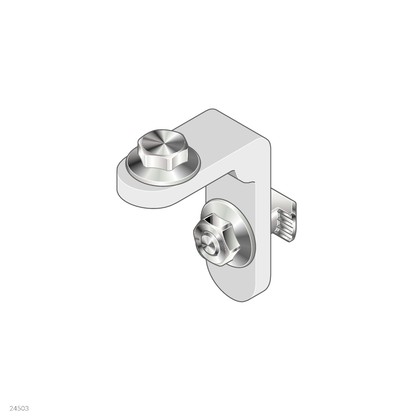

Suspension bracket

Specifications

• Fastening material 4x T-bolt M8x20,4x flange nut M8,2x bolt D10 D8.6,2x locking screw M8x16, 4x hexagonal screw ISO4017 M6x16; 4x T-nut 10 M6, 2x headless setscrew ISO4026 M6x20, 2x hexagonal screw EN1665 M6x10, 4x centering bolt D10/5
• Height 40 mm
• Length 115 mm, 170 mm
• Material Diecast zinc, Steel, galvanized

Downloads

• Data Sheet

Products

Attachment kit for safety switch

Specifications

• Fastening material 2x countersunk screw DIN7991-M5x12,2x T-nut groove 8 M5,2x cylinder head screw ISO4762-M6x16,2x washer DIN125-6.4,2x T-nut groove 10 M6,2x countersunk screw ISO10642-M5x16, 2x countersunk screw DIN7991-M5x12,2x T-nut groove 8 M5,2x cylinder head screw ISO4762-M6x16,2x washer DIN125-6.4,2x T-nut groove 10 M6
• Height 60 mm, 100 mm
• Length 180 mm, 200 mm
• Material Steel, galvanized

Downloads

• Data Sheet
• Manual

Products

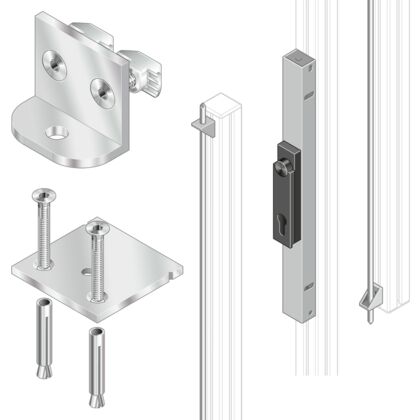

Lock mechanism for double door

Specifications

• Fastening material 2x countersunk screw DIN7991-M6x20,4x T-nut groove 10 M6,2x cylinder head screw DIN7984-M6x16,4x flattened round head screw ISO7380-M6x8, 2x countersunk screw DIN7991-M8x60, 2x countersunk screw DIN7991-M6X16,2x T-nut groove 10 M6
• Height 40 mm, 50 mm, 55 mm
• Length 85 mm, 105 mm, 850 mm
• Packaging unit 1

Downloads

• Data Sheet
• Manual

Products

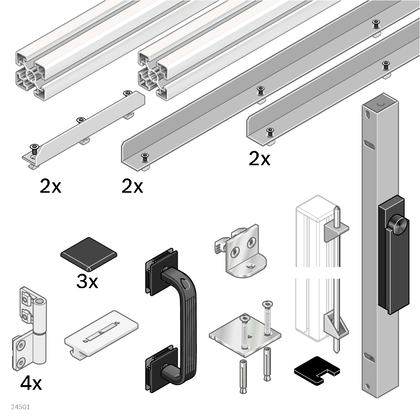

EcoSafe double door kit

Specifications

• Height of protective frame [HR] 1800 mm
• Packaging unit 1
• Recommended accessories Door lock (3842525823),Attachment kit for safety switch (3842522475,3842522476,3842522477),Conventional lock cylinder, Door lock (3842525823),Attachment kit for safety switch (3842522475,3842522476,3842522477),Conventional lock cylinder 35/35 (is not included in the scope of delivery)
• Required accessories Two protective frames

Downloads

• Data Sheet
• Manual

Products

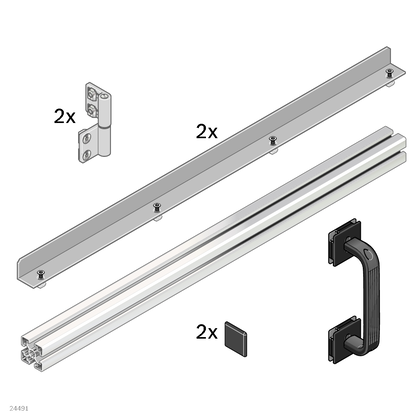

EcoSafe system door kit

Specifications

• Height 35 mm, 70 mm, 100 mm, 110 mm, 120 mm
• Length 800 mm, 950 mm, 1050 mm, 2000 mm, 2200 mm, 2800 mm, 3050 mm
• Packaging unit 1
• Width 35 mm, 120 mm, 140 mm, 150 mm, 160 mm

Downloads

• Data Sheet
• Manual

Products

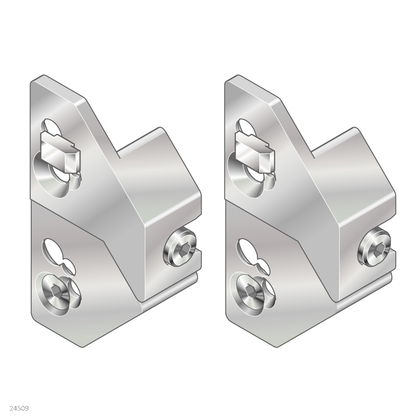

Suspension piece for frames

Specifications

• Fastening material 4x countersunk screw DIN7991-M6x12,4x T-nut groove 8 M6,4x countersunk screw DIN7991-M8x16,4x T-nut groove 10 M8,4x cylinder head screw DIN7984-M8x12,4x hexagon nut ISO4032-M8, 8x countersunk screw DIN7991-M8x16,8x T-nut groove 10 M8,4x cylinder head screw DIN7984-M8x12,4x hexagon nut ISO4032-M8
• Height 50 mm
• Length 150 mm
• Material Diecast zinc

Downloads

• Data Sheet

Products

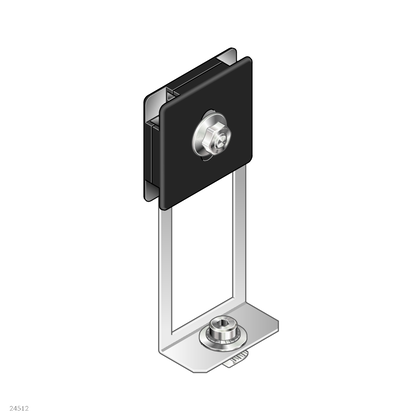

Ground terminal

Specifications

• Fastening material 1 x cylinder head screw ISO4762-M6x10,1x serrated washer DIN6798-A6.4,1x washer DIN9021-A6.4,1x T-nut groove 8 M6,1x flattened round head screw ISO7380-1-M8x25,1x washer DIN9021-A8.4,1x spring washer DIN128-A8,1x flange nut M8
• Height 37 mm
• Length 100 mm
• Material Steel

Downloads

• Data Sheet
• Manual

Products

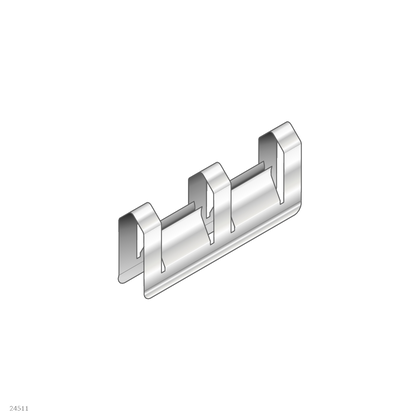

Spring clamping element

Specifications

• Height 11 mm
• Length 45 mm
• Material Spring steel, stainless
• Packaging unit 100

Downloads

• Data Sheet

Products

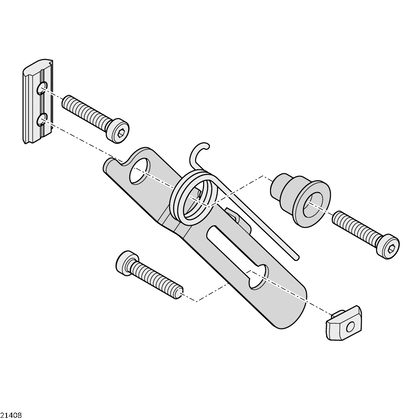

Tilt lever

Specifications

• Fastening material 3 x cylinder head screw DIN7984-M5x20,1x sliding block 10 2xM5,1x T-nut groove 8 M5
• Height 12 mm
• Length 138 mm
• Material information Holding plate: Stainless steel,Spacer: Aluminum,Long-arm spring: Spring steel

Downloads

• Data Sheet
• Manual

Products

Clamping element

Specifications

• Color Black, Signal gray (RAL 7004)
• Height 6 mm, 10 mm
• Length 53 mm
• Material PA 66

Downloads

• Data Sheet
• CAD

Products

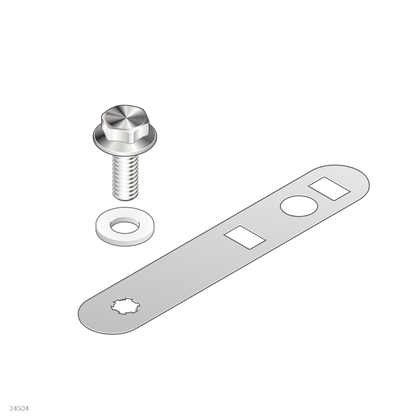

Safety Strip safety kit

Specifications

• Fastening material 1 x hexagon screw M8x20-10.9VZ,1x washer M8 KS N.DIN 125
• Height 1 mm
• Length 150 mm
• Material PP

Downloads

• Data Sheet

Products
