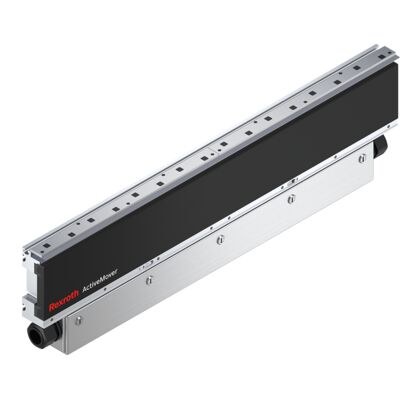

Section module
Specifications
- Fastening material included No
- Required accessories Module holder, section module connecting kit
- Length 1200 mm
- Width 180 mm
