Transportation control TS 1

Control of the transportation of workpiece pallets within a TS 1 system.

Pneumatic stop gate TS 1

Pneumatic stop gate TS 1

Specifications

Recommended accessories Pneumatic valve. Recommendation: Rexroth M5, nominal flow rate 100 l/min, Switch Bracket
Scope of delivery Incl. fastening material for assembly on conveyor section,Pneumatic connection (pushlock type, ∅ 4 mm), Incl. fastening material for assembly on conveyor section,Pneumatic connection (pushlock type, ∅ 4 mm),3/2-way valve, electrically activated, Incl. fastening material for assembly on conveyor section,Pneumatic elbow fitting (pushlock type)
Workpiece pallet weight [mG] 15 kg, 121010108, 8080604040
Height 50 mm, 55 mm, 67.5 mm

Downloads

Electrical stop gates TS 1

Electrical stop gates TS 1

Specifications

Required accessories Actuator and sensor system cables common in the market (5-pole), Actuator system cable common in the market (4-pole)
Nominal speed [vN] 6 m/min,9 m/min,12 m/min,15 m/min,18 m/min
Workpiece pallet weight [mG] 10 kg, 20 kg, 106543, 2012864
Material information Housing: Aluminum, anodized,Tilt stop: Steel, hardened, elastomer, Housing: Aluminum, hard anodized,Stop: Steel, hardened

Downloads

Damper TS 1

Damper TS 1

Specifications

Scope of delivery Incl. fastening material for assembly on conveyor section,Pneumatic straight fitting (pushlock type), Incl. fastening material for mounting on stop rail AL1 of the EQ 1/…,Pneumatic straight fitting (pushlock type)
Workpiece pallet weight [mG] 10 kg, 1010987
Length 105 mm, 150 mm
Delivery information Fully assembled

Downloads

Switch bracket TS 1

Switch bracket TS 1

Specifications

Dry room <lt/>1
Required accessories Sensor Ø 6.5 mm x 30 mm with M8x1 push-in fitting, rated sensing range of S<sub>N</sub> = 4 mm
Scope of delivery Incl. fastening material for assembly on conveyor section
Material information Fastening material: Steel, galvanized, Half shells: Polyamide, black

Downloads

Rocker TS 1

Rocker TS 1

Specifications

Height 28 mm, 50 mm
Width 50 mm, 95 mm
Length 65 mm, 105 mm
Clean room classification ISO class 7

Downloads

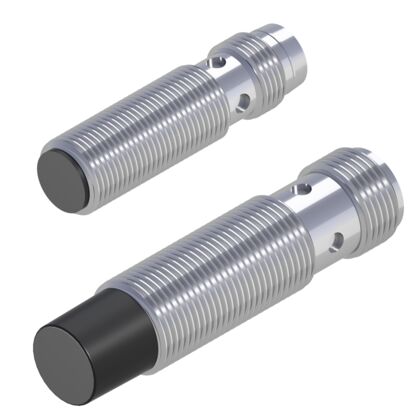

Sensors TS 1

Sensors TS 1

Specifications

Function display LED
Operating voltage DC 10 ... 30
Material information Housing: CuZn coated, LCP, Housing: CuZn, nickel-free coating,Active surface: LCP, Housing: CuZn, nickel-free coating,Active surface: PBT, Housing: Non-rusting steel 1.4301,Active surface: PBT, Housing: Stainless steel, stainless,Active surface: LCP, Housing: Steel, stainless,Active surface: PA 12
Push-in fitting M12x1, M8 x 1, M8x1

Downloads

Data Sheet
