Valve accessories

Electrical connections

Specifications

• Electrical connector Connector, 3-pole (2 + PE), DIN EN 175301-803, DIN 43650 – EN 175301-803 – Circuit with diode on one side + LED, DIN 43650 – EN 175301-803 – Circuit with LED, DIN 43650 – EN 175301-803 – Circuit with VDR, DIN 43650 – EN 175301-803 – Circuit with VDR + LED, DIN 43650 – EN 175301-803 – Circuit with VDR + rectifier, DIN 43650 – EN 175301-803 – Circuit with VDR + rectifier + LED
• Supply voltage 12 V DC, 24 VDC, 24 V DC, 115 V AC, 230 V DC
• Product family classification CONNECTOR FOR COIL
• Product family type Connector

Downloads

• Data Sheet
• Operating Instructions

Products

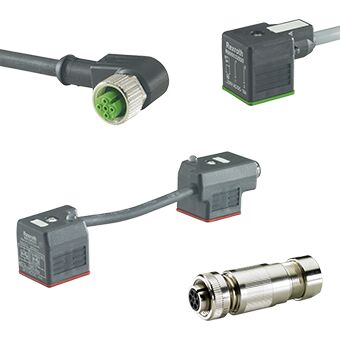

Cable sets

Downloads

• Data Sheet
• Operating Instructions

Products

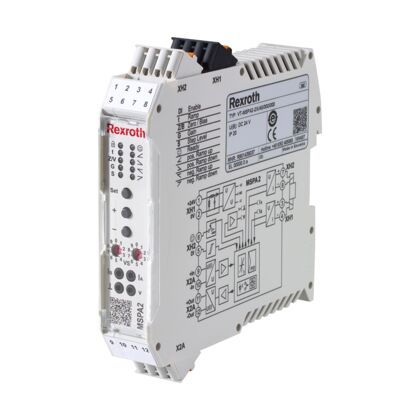

Valve accessories, valve amplifier

Specifications

• Connectivity Analog, Analog, command value 0…10 V, Analog, command value 4…20 mA, Analog, command value ±10 V, Switching signal
• Design Connector, Module, Printed circuit board
• Electrical connector 32-pin connector plug, form F, 32-pin connector plug, form D, 48-pin connector plug, form F, Cable gland, Connection cable with open cable ends, Connector, 4-pole, M12 x 1, coding A, Screw terminals
• Supply voltage 24 VDC

Downloads

• Data Sheet
• Operating Instructions
• CAD

Products

coils

Specifications

• Product family type Coil

Downloads

• Data Sheet

Products
