Leveling feet, modular

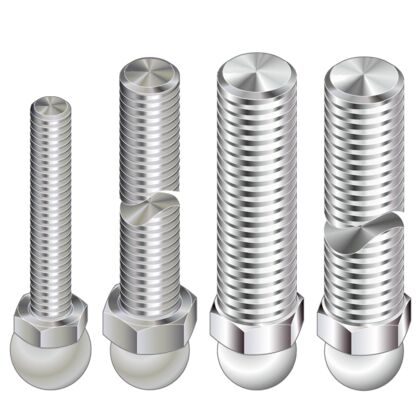

Spindle

Specifications

• Adjustment range [V] 20 mm, 30 mm, 80 mm, 135 mm
• ESD Yes
• Force F 10000 N, 20000 N, 30000 N
• Height 12 mm, 16 mm, 21 mm, 27 mm, 70 mm

Downloads

• Data Sheet

Products

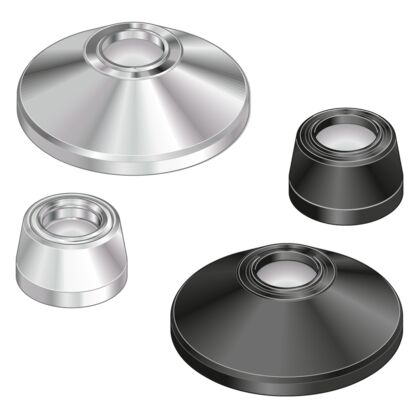

Base plates for leveling feet, modular

Specifications

• Diameter D 29 mm, 39 mm, 44 mm, 59 mm, 79 mm
• Force F 5000 N, 9000 N, 20000 N, 30000 N
• Material Diecast zinc, powder-coated, PA, Stainless steel
• Packaging unit 20

Downloads

• Data Sheet

Products

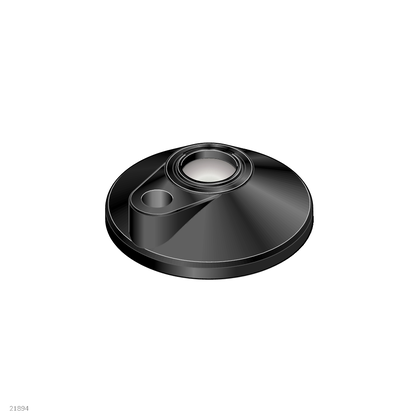

Base plate with screw hole

Specifications

• Color Black
• Diameter D 59 mm, 79 mm
• Dimension [a] 21 mm, 31 mm
• Force F 3000 N, 30000 N

Downloads

• Data Sheet

Products

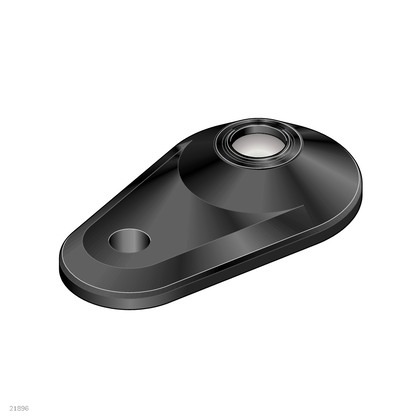

Oval base plate with screw hole

Specifications

• Color Black
• Diameter D 59 mm, 79 mm
• Dimension [a] 52 mm, 65 mm
• Force F 30000 N

Downloads

• Data Sheet

Products

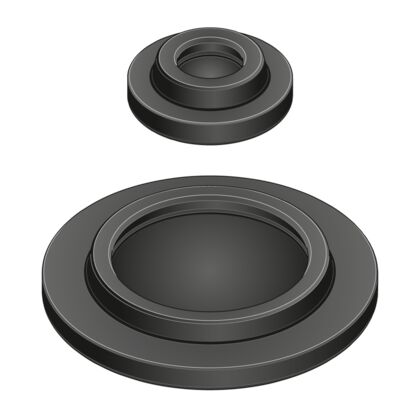

Damping plate

Specifications

• Color Black
• Diameter D 29 mm, 39 mm, 44 mm, 59 mm, 79 mm
• Force F 110 N, 1600 N, 2000 N, 2500 N, 2800 N
• Height 9 mm, 44 mm

Downloads

• Data Sheet

Products
