Round tube
Specifications
- Packaging unit 1, 4, 10, 20
- Material Aluminum, Aluminum, anodized, PA 66, PA 66, conductive, PE-LD, PVC, PVC, conductive
- Height 3…2060 mm
- Length 28 mm, 120 mm, 150 mm, 2000 mm, 2010 mm, 6170 mm, 6200 mm
Welcome to Gavilion
-
Malaysia
- Login / Register
Browse Categories
EcoShape tubular framing system
EcoShape Threaded sleeve
Specifications
- ESD Yes
- Height 28 mm, 50 mm
- Length 45 mm, 150 mm
- Material Diecast zinc, PA 66, conductive
Downloads
Fixed connector
Specifications
- Material Diecast aluminum, Diecast zinc
- Packaging unit 20
- Scope of delivery Incl. fastening material
- ESD Yes
Downloads

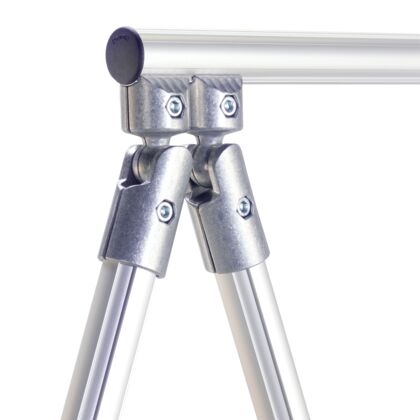

Movable connector
Specifications
- Height 25 mm, 34 mm, 60 mm, 100 mm, 110 mm, 120 mm
- Length 72 mm, 90 mm, 150 mm, 200 mm, 250 mm, 290 mm, 1050 mm
- Material Aluminum, Diecast zinc, POM
- Packaging unit 2, 4, 20
Downloads

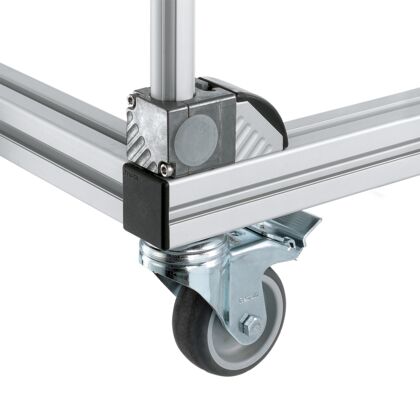

EcoShape Adapter
Specifications
- Height 22 mm, 27 mm, 45 mm, 70 mm, 80 mm, 120 mm
- Length 30 mm, 60 mm, 160 mm, 175 mm, 190 mm, 350 mm
- Material Diecast zinc, PA 66, PA 66, conductive
- Packaging unit 10, 20
Downloads
EcoShape Hinge
Specifications
- ESD Yes
- Fastening material 2x cylinder head screw ISO4762-M6x12,2x T-nut groove 8 M6,1x grooved pin ISO8741-6x60,1x washer DIN125-A6.4, 4x cylinder head screw ISO4762-M6x12,4x T-nut groove 8 M6,1x grooved pin ISO8741-6x60,1x washer DIN125-A6.4
- Height 50 mm
- Length 250 mm
Downloads

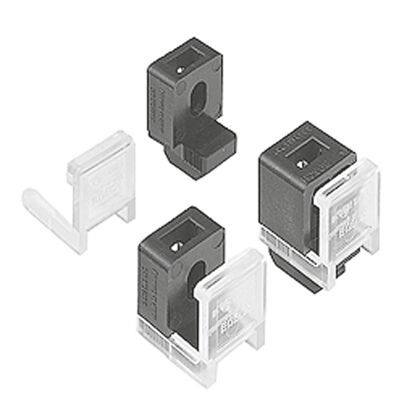

EcoShape Variofix block
Specifications
- Height 21 mm, 75 mm, 120 mm
- Length 27 mm, 190 mm, 290 mm
- Material Diecast zinc, PA, PA 66, conductive
- Packaging unit 10, 20
Downloads

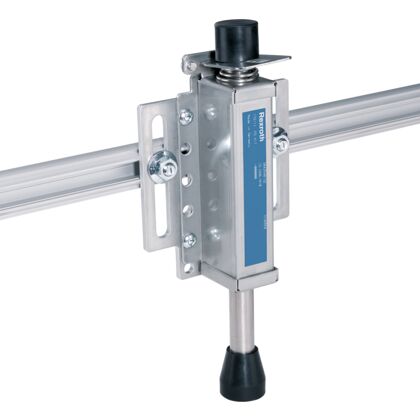

EcoShape Accessories
Specifications
- Height 9 mm, 15 mm, 30 mm, 35 mm, 40 mm, 75 mm, 80 mm, 280 mm
- Length 34 mm, 180 mm, 220 mm, 250 mm, 260 mm, 280 mm, 320 mm, 2000 mm
- Packaging unit 1, 2, 10, 20
- Width 20 mm, 85 mm, 150 mm, 170 mm, 180 mm, 200 mm, 210 mm
