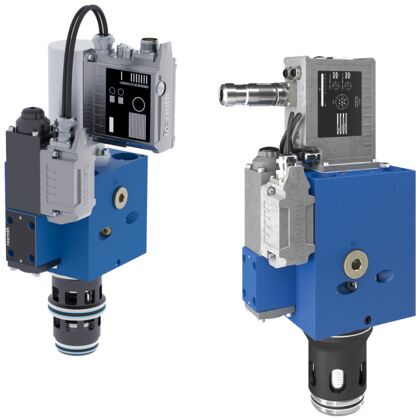

High-response valves
Specifications
- Size 25, 32, 40, 50, 63, 80, 100
- Component series 2WRC../H, 3WRCBEE
- Maximum operating pressure 315 bar, 420 bar
- Maximum flow 0…22000 l/min
Welcome to Gavilion
-
Malaysia
- Login / Register
Browse Categories
Cartridge valves ISO 7368
Large volume flows can be controlled using compact cartridge valves from Bosch Rexroth according to ISO7368, consisting of a logic insert and cover. The flexible combination and various equipment options mean that many different active and passive functions are possible.

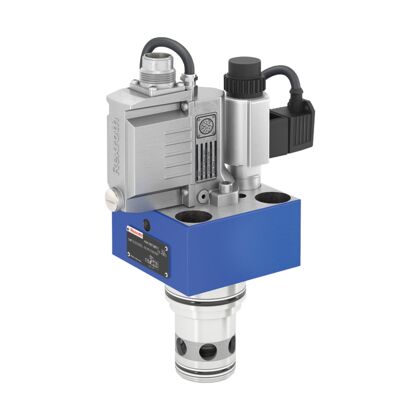

Installation throttle valves
Specifications
- Size 25, 32, 40, 50, 63
- Component series 2WFC(E), FESE63
- Maximum operating pressure 315 bar, 420 bar
- Electric connection description Connector, 12-pole (11 + PE) according to EN 175201-804, Connector, 3-pole (2 + PE) according to EN 175301-803, Connector, 7-pole (6 + PE) according to EN 175201-804
Downloads

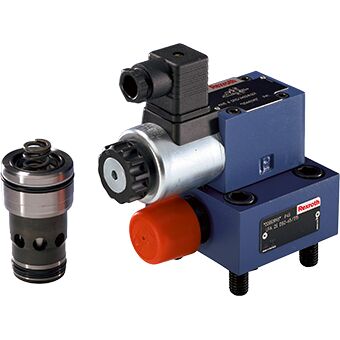

Logic elements, pressure function
Specifications
- Size 16, 25, 32, 40, 50, 63, 80, 100
- Component series LC, LC (high pressure), LFA, LFA (high pressure), LFA …E
- Maximum operating pressure 315 bar, 350 bar, 400 bar, 420 bar, 450 bar, 700 bar
- Hydraulic fluid HL,HLP,HETG,HEES,HFDU, HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR, HL,HLP,HLPD,HVLP,HVLPD,HFC
Downloads
Logic elements, directional function with position monitoring
Specifications
- Size 16…160
- Component series LC2A, LFA, LFA ..E
- Maximum operating pressure 420 bar, 450 bar
- Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR, HL,HLP,HLPD,HVLP,HVLPD,HFC

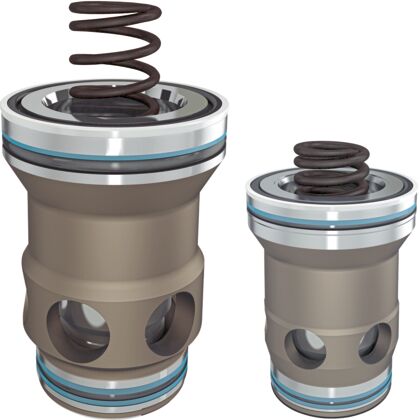

Logic elements, directional function
Specifications
- Size 16…160
- Component series LC, LCT, LFA, LFA (high pressure), LFT
- Maximum operating pressure 420 bar, 450 bar, 1000 bar
- Hydraulic fluid HL,HLP,HETG,HEES,HFDU, HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HDFR, HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR, HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HFDU, HL,HLP,HLPD,HVLP,HVLPD,HETG,HFDU,HFDR, HL,HLP,HLPD,HVLP,HVLPD,HFC
