Electronics and control systems

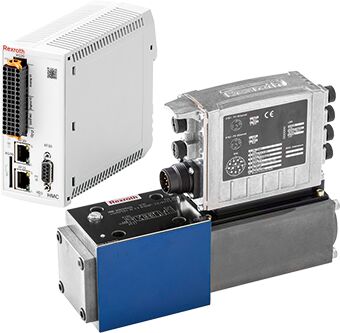

Axis control

Specifications

• Component series 4WRPDH, 4WRLD, VT-HACD-3, VT-HMC
• Conformity CE – RoHS Directive 2011/65/EU,CE – Electromagnetic compatibility (EMC) directive 2014/30/EU, RoHS,CE, UKCA – Electromagnetic compatibility (EMC) SI2016/1091,CE – Electromagnetic compatibility (EMC) directive 2014/30/EU, UKCA,CE
• Connectivity Analog, command value ±10 V,Analog, command value 4…20 mA,Digital, EtherNET/IP, Bus connection, ±10 VDC or 4 ... 20 mA,Digital, EtherCAT, ±10 VDC or 4 ... 20 mA,Digital, EtherNET/IP
• Supply voltage 24 VDC

Downloads

• Data Sheet
• Operating Instructions
• CAD
• Release Note

Products

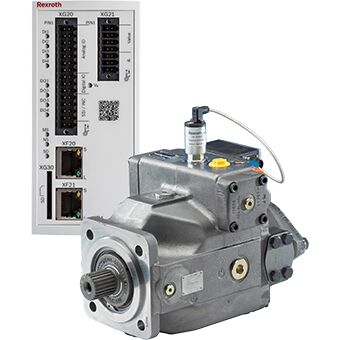

Pump control

Specifications

• Component series VT-HPC-1
• Conformity CE – RoHS Directive 2011/65/EU,CE – Electromagnetic compatibility (EMC) directive 2014/30/EU, RoHS,CE
• Connectivity Bus connection
• Design Module

Downloads

• Data Sheet
• Operating Instructions
• CAD

Products

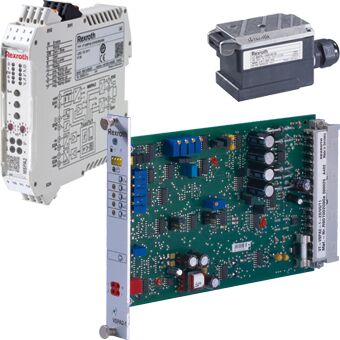

Electronics and control systems, valve amplifiers

Specifications

• Connectivity Analog, Analog, command value 0.3…8 V, Analog, command value 0…10 V, Analog, command value 4…20 mA, Analog, command value ±10 mA, Analog, command value ±10 V, Analog, command value ±50 mA, Switching signal
• Design Connector, Module, Printed circuit board
• Electrical connector 32-pin connector plug, form F, 32-pin connector plug, form D, 48-pin connector plug, form F, Cable gland, Connection cable with open cable ends, Connector, 4-pole, M12 x 1, coding A, Screw terminals
• Supply voltage 24 VDC

Downloads

• Data Sheet
• Operating Instructions
• CAD
• Fact Sheet

Products

Electronics accessories

Specifications

• Electric connection description 48-pin connector plug, form F, Connector, 3-pole (2 + PE) according to EN 175301-803, Connector, 4-pole (3 + PE) according to EN 175301-803, Connector, 4-pole, M12 x 1 according to EN 61076-2-101, with LED and interference protection circuit, Connector, 7-pole (6 + PE) according to EN 175201-804, Screw terminals
• Supply voltage 12…240 V AC/DC, 16…36 V AC/DC, 24 VDC, 80…240 VAC, 90…130 V AC/DC, 180…240 V AC/DC, 250 V AC/DC
• Electrical connector Connector, 3-pole (2 + PE), Connector, 4-pole (3 + PE), Connector, 4-pole, M12 x 1, coding A, Connector, 7-pole (6 + PE), Screw terminals

Downloads

• Data Sheet
• Operating Instructions

Products
