SCRAPER PLATE

25/70 &

RM 0.00

Optional add-ons

Compatible spare parts you can add to your order. You can add to cart without selecting any.

Quantity

Product ID: R167021010
Categories: Linear guides, Ball rail systems High Precision BSHP, Accessories for ball rail systems, Linear Motion Technology, Profiled rail systems, Accessories for profiled rail systems, Cover plate wiper, Cover plate wiper ball rail systems

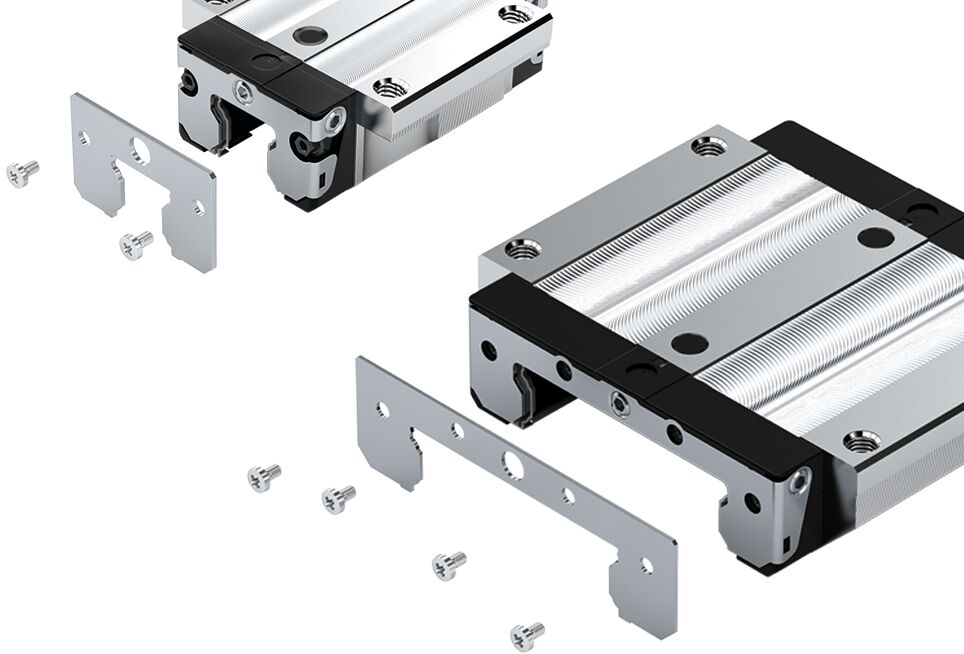

Cover plate wiper for ball rail systems Size = 25/70

Specifications

Gross weight 19.6 g
Net weight 19.6 g
Accessories for Runner block
Nominal size 25/70
Type without cover strip
Weight 0.02 kg
Size footnote Wide ball rail system
Dimension A4 (profiled rail system) 101 mm
Dimension B3 3.4 mm
Dimension B4 1 mm
Dimension diameter S12 (profiled rail systems) 7 mm
Dimension diameter S9 (profiled rail systems) 4 mm
Dimension E8 (profiled rail systems) 35 mm
Dimension E8.1 (profiled rail systems) 83.5 mm
Dimension E9 (profiled rail systems) 4.35 mm
Dimension E9.1 (profiled rail systems) 10.75 mm
Dimension H3 29.1 mm

Filename	Action
R167021010.dwg
Ball rail systems High Precision BSHP
