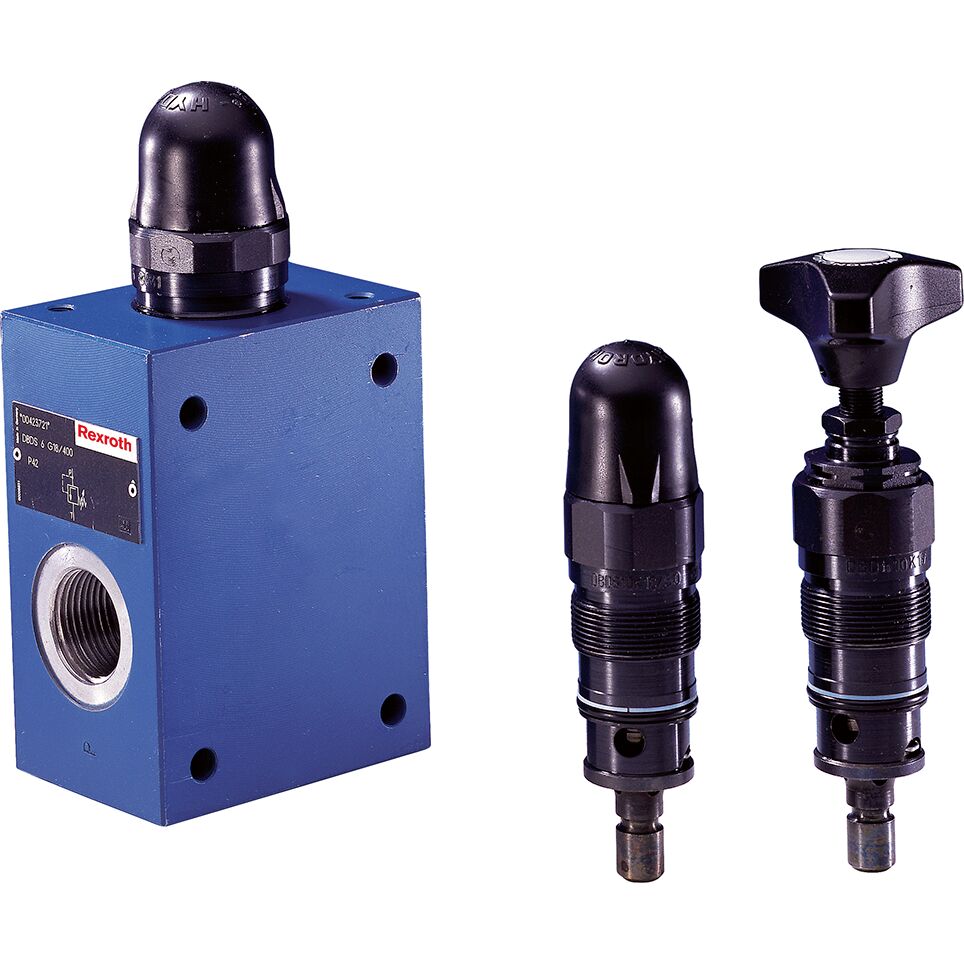

PRESSURE RELIEF VALVE

Name: PRESSURE RELIEF VALVE
Brand: Bosch Rexroth
SKU: R900424738
Availability: InStock

DBDS10G1X/100

RM 0.00

Compatible spare parts you can add to your order. You can add to cart without selecting any.

Quantity

Industrial hydraulic valve in a high performance range. Reliable pressure limitation to setting value

Gross weight 3.58 kg
Net weight 3.58 kg
Connection diagram Pipe thread G1/2 ISO 228-1
ECLASS_13_Classification 51-44-02-01
Product family DBD.6-30
Operating pressure, max. 100 bar
Max. flow 120 l/min
Spool symbol P → T
Type of connection Threaded connection
Size 10
Type of actuation with mechanical actuation
Number of ports 2
Number of switching positions 2
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC (Fuchs: Hydrotherm 46M, Renosafe 500; Petrofer: Ultra Safe 620; Houghton: Safe 620; Union: Carbide HP5046)
Seals NBR
Weight 3.58 kg

Filename	Action
Pressure relief valve, direct operated
Pressure relief valve, direct operated
R900424738
e75009e6-53db-4714-a333-66afabc2e753_original
