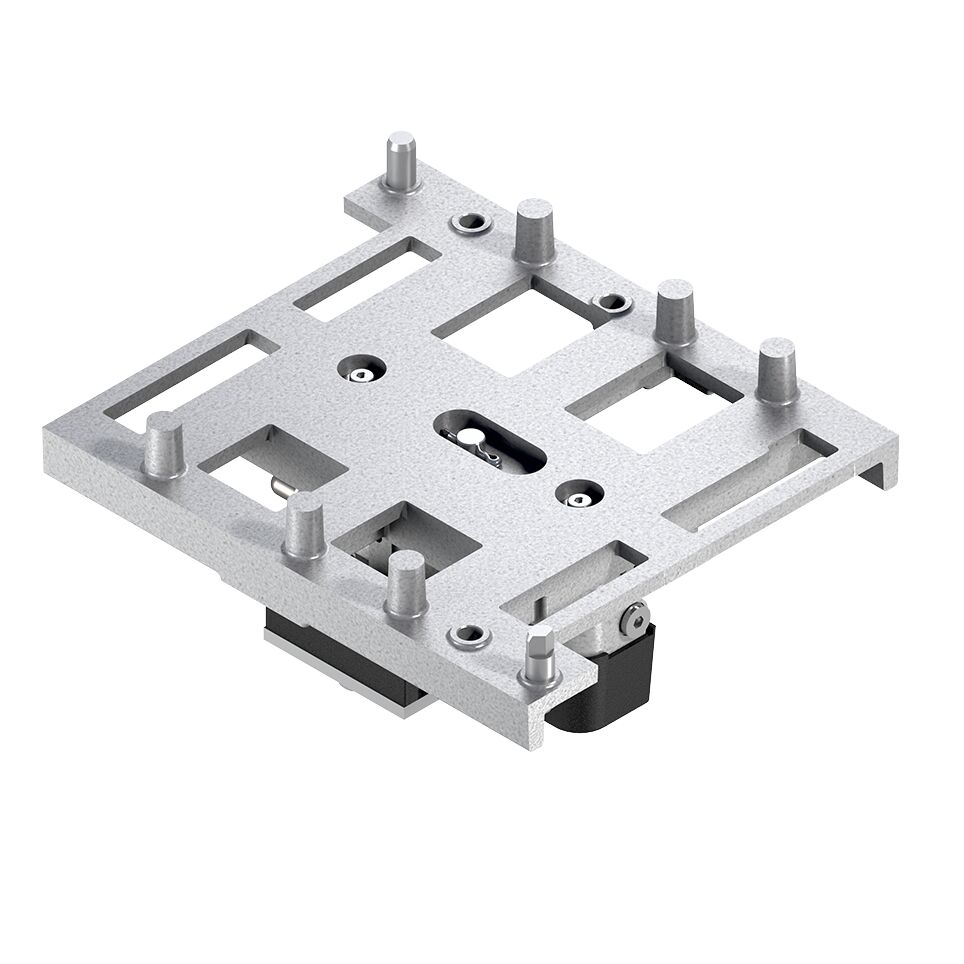

POSITIONING UNIT

POSITIONING UNIT

POSITIONING UNIT

PE 2 LT240*B160

RM 0.00

Optional add-ons

Compatible spare parts you can add to your order. You can add to cart without selecting any.

Quantity

Product ID: 3842504707
Categories: Assembly Technology, Transfer system TS 2plus, Positioning and orientation TS 2plus, Positioning units TS 2plus, AST - positioning, Positioning units, PE 2

PE 2 positioning unit, 160 x 240

Specifications

Gross weight 2.8 kg
Net weight 2.8 kg
Length 400 mm
Width 240 mm
Height 135 mm
ESD Yes
Thread size G1/8”
Repetition accuracy ±0,1
Track width in direction of transport [b] 160
Workpiece pallet weight [mG] 30 kg
Scope of delivery Incl. fastening material
required compressed air connection [pmin] 4 bar
Lift of WT over conveyor medium [h0] 25
Delivery information Fully assembled
required compressed air connection [pmax] 6 bar
Permissible vertical process force 300 N
Length in direction of transport [lT] 240
Recommended accessories Position sensing kit for PE 2
Required accessories Stop gate VE 2/...
Weight 2.8 kg

Filename	Action
PE 2 Positioniereinheit
p827958_en.pdf
