The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
Welcome to Gavilion
-
Malaysia
- Login / Register

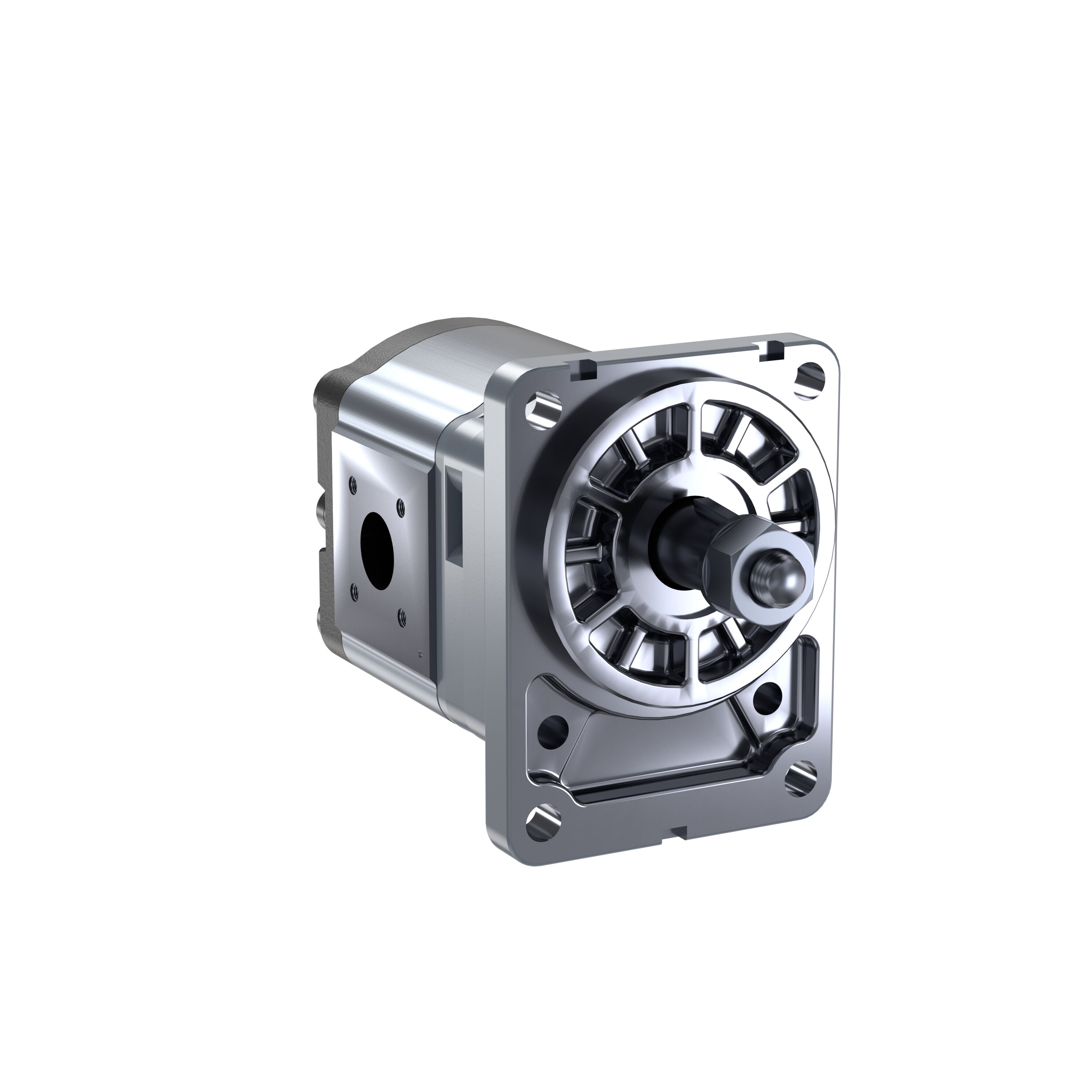

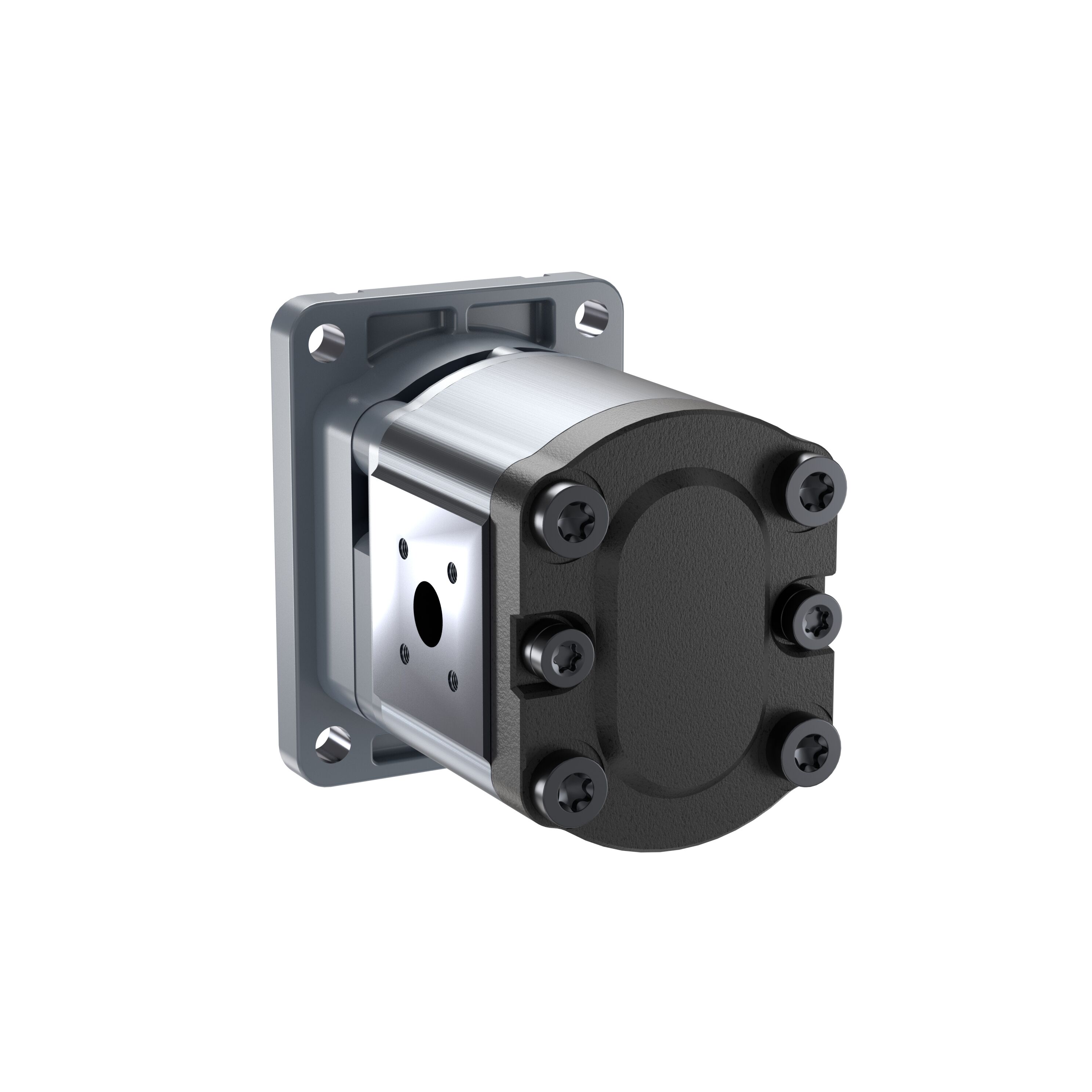

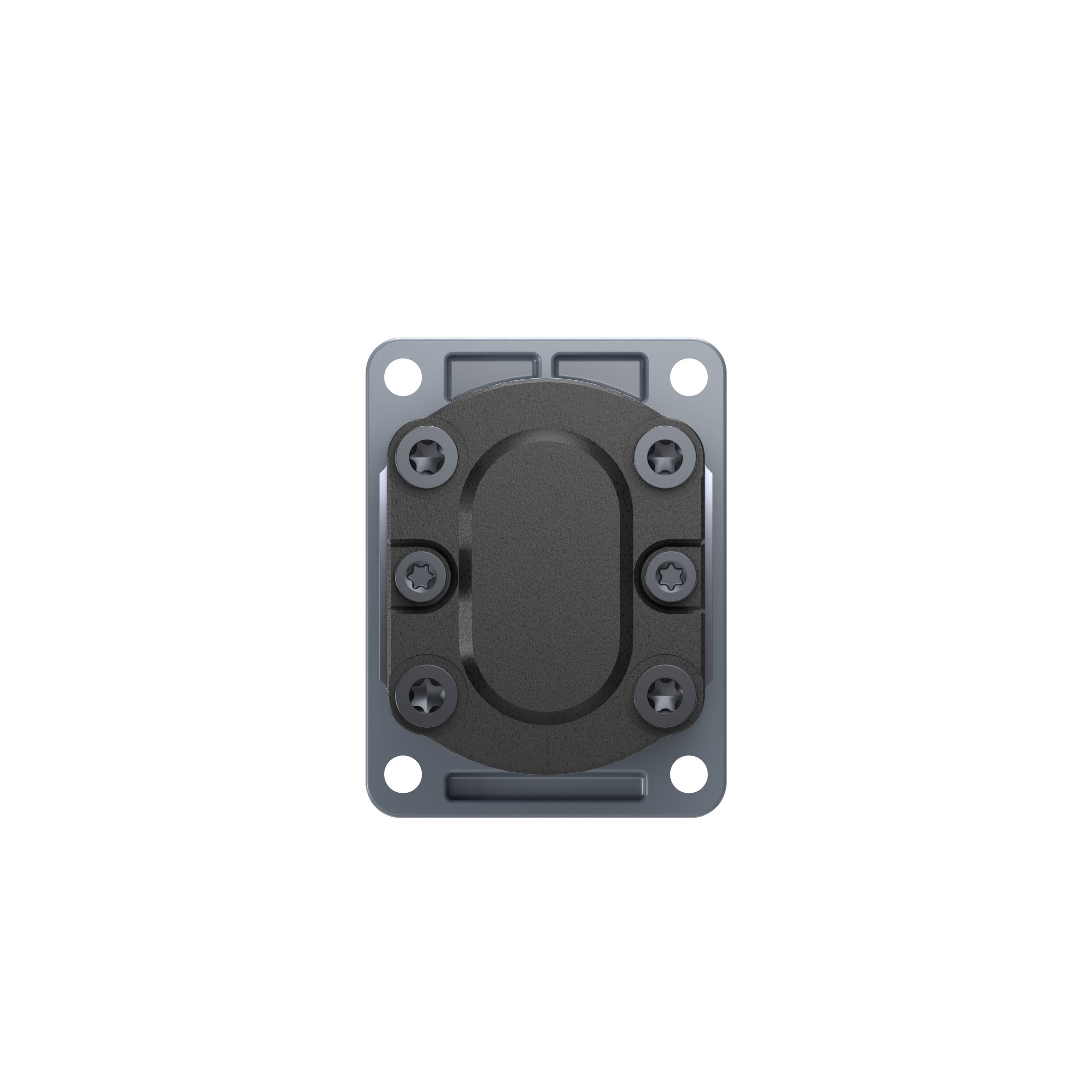

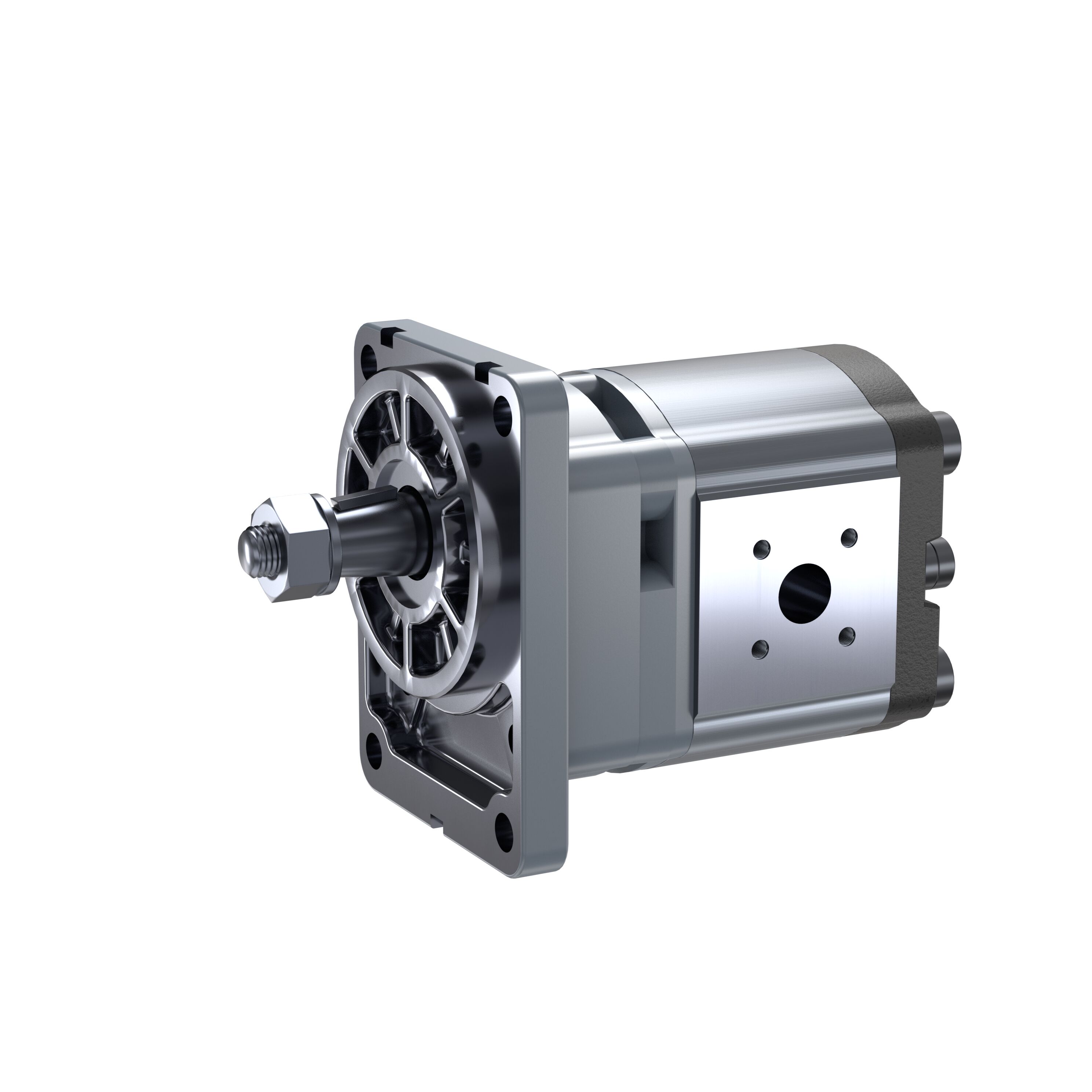

HYDRAULIC GEAR PUMP
In Stock
Out of Stock
AZPF-11-011RSA20MB
RM 0.00
Specifications
- 3444 g
- 3444 g
- 38.5 l/min
- 11 cm³/rev
- 280 bar
- 3500 rpm
- Tapered 1:5 for front cover A
- Clockwise rotation
- Outrigger dia. 80 mm (type 1)
- Aluminum
- Standard noise level
- External gear unit
- Pump
- High perf (F) (4..28 cm³/rev)
- Bearing diameter 18 mm
- Phosphated, aligned covers
- Square flange (German version)
- NBR
- Standard (cast iron)
- Deviations from catalogue standards, see drawing
- 3.45 kg
- ...
- ...
