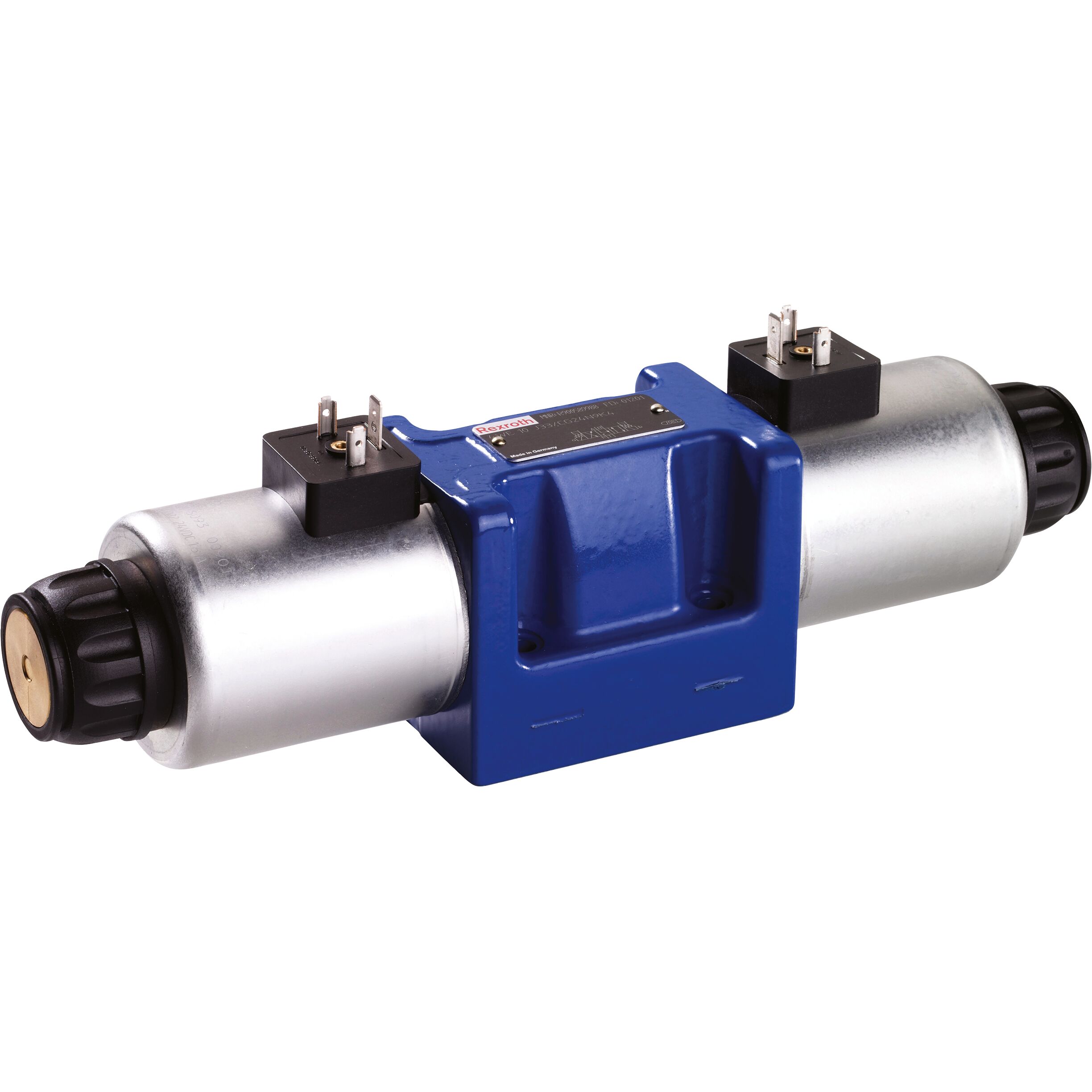

DIRECTIONAL SPOOL VALVE

Name: DIRECTIONAL SPOOL VALVE
Brand: Bosch Rexroth
SKU: R901278772
Availability: InStock

4WE10C5X/EG24N9K4/M

RM 0.00

Compatible spare parts you can add to your order. You can add to cart without selecting any.

Quantity

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.

Gross weight 4.02 kg
Net weight 4.02 kg
Connection diagram ISO 4401-05-04-0-05
ECLASS_13_Classification 51-44-01-02
Product family WE10../E
Operating pressure, max. 350 bar
Max. flow 135 l/min
Spool symbol Symbol C
Type of connection Subplate mounting
Size 10
Type of actuation with solenoid actuation
Number of ports 4
Number of switching positions 2
Supply voltage 24 VDC
Electrical connector Connector, 3-pole (2 + PE)
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Seals NBR
Weight 4.02 kg

Filename	Action
Directional spool valves, direct operated, with solenoid actuation
