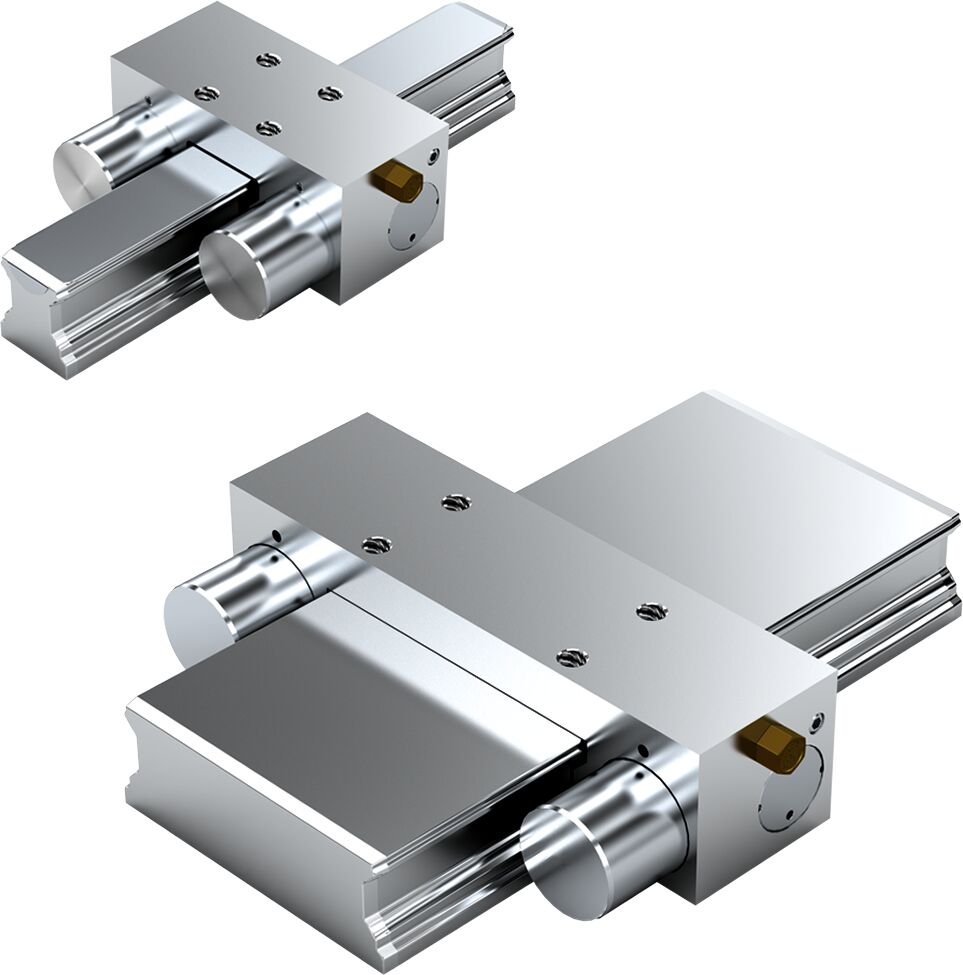

Pneumatic clamping unit MKS*) for ball rail systems
Size = 25
Can be used on all SNS ball guide rails
*)Zimmer GmbH
Welcome to Gavilion
-
Malaysia
- Login / Register
CLAMPING ELEMENT
In Stock
Out of Stock
MKS 2505 KB &
RM 0.00
Specifications
- 0.65 kg
- 0.65 kg
- Runner block
- All ball guide rails BNS
- 25/70
- Holding force achieved by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
- 0 °C ... +70 °C
- 0.65 kg
- Increased holding force by additional air admission at air-plus port with 6.0 bar. Switching via 5/2 or 5/3-way directional control valve.
- 0.021 dm³/stroke
- 120 mm
- 94 mm
- 35 mm
- 22 mm
- 50 mm
- 20 mm
- 5 mm
- 9 mm
- 30 mm
- 35 mm
- 32.5
- 20 mm
- 8 mm
- M6
- 5.5 mm
- Ball runner block .H. (...High...) Spacer plate necessary.
- 20 mm
- ...
- ...
