BELLOWS

25/70 TYP 9

RM 0.00

Optional add-ons

Compatible spare parts you can add to your order. You can add to cart without selecting any.

Quantity

Product ID: R167020900
Categories: Linear guides, Ball rail systems High Precision BSHP, Accessories for ball rail systems, Linear Motion Technology, Profiled rail systems, Accessories for profiled rail systems, Bellows, Standard bellows

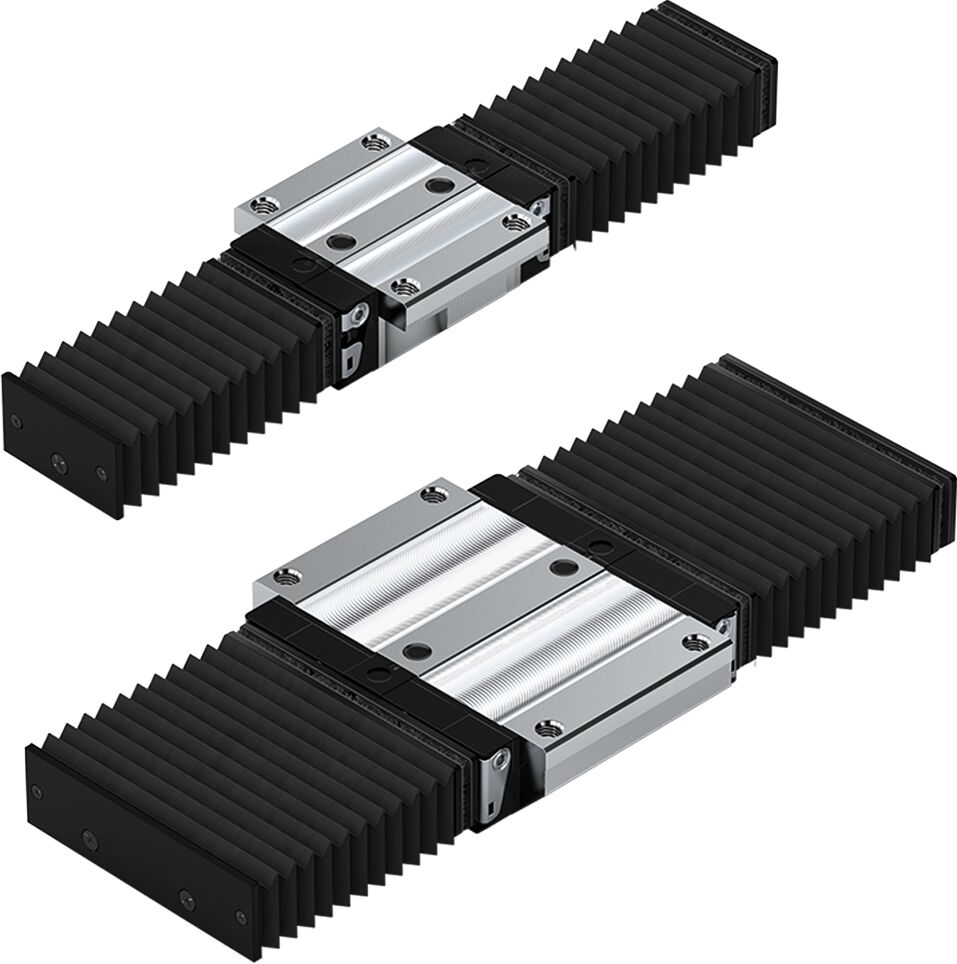

Bellows (standard) for ball rail systems Type 9: Loose bellows (spare part) Size = 25/70

Specifications

Accessories for Runner block
Nominal size 25/70
Type Type 9
Height runner block with guide rail 35 mm
Weight 0 kg
Factor U footnote Calculation factor (see project planning notes)
Size footnote Wide ball rail system
Dimension A4 (profiled rail system) 101 mm
Dimension H 35 mm
Dimension H3 29 mm
Dimension H4 35 mm
Dimension W 12.9 mm
