The ball runner block is highly precise and characterized by the following product features:
Size 25
Format BNS: Width = wide, length = normal, height = standard
Runner block body made of unalloyed steel CS
Preload class C1: Low preload
Accuracy class N: Standard
Without ball chain
With initial lubrication and preservation
Roller bearing grease Dynalub 510
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
Straight lube connection loosely attached.
Runner block body in standard version
Overall length of the runner block = 105.0 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Welcome to Gavilion
-
Malaysia
- Login / Register

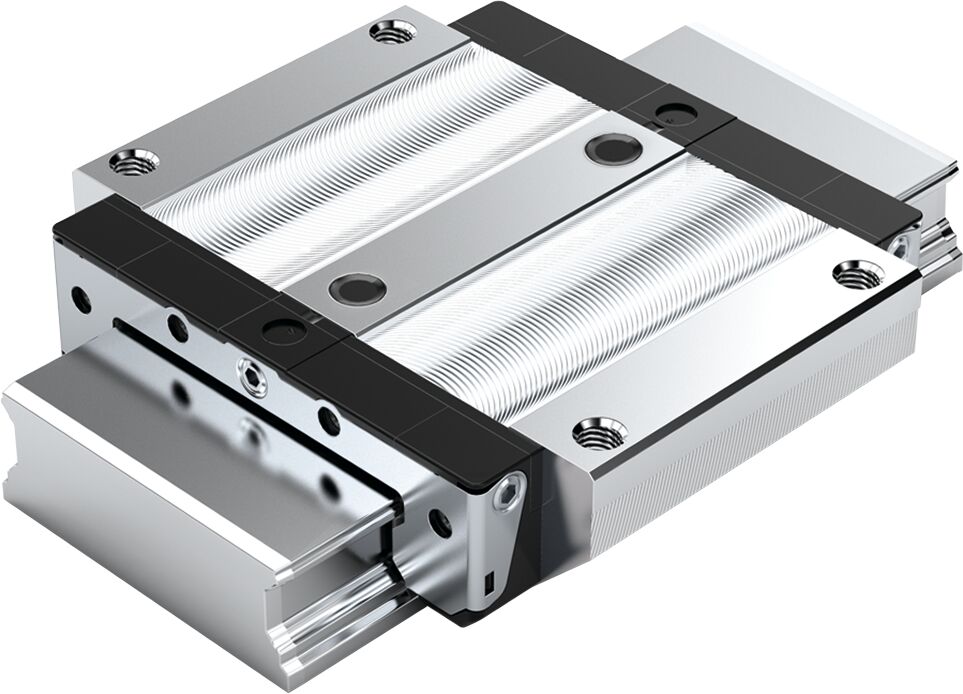

BALL RUNNER BLOCK CARBON STEEL
In Stock
Out of Stock
KWD-025-BNS-C1-N-1
RM 0.00
Specifications
- 1.331 kg
- 1.331 kg
- Ball rail system
- 25/70
- BNS - wide, normal, standard height
- Wide ball runner block
- Carbon steel
- C1 - Low preload
- N - Normal
- SS - Standard seal
- Without ball chain (standard)
- Without self-alignment
- 120 mm
- 105 mm
- 29.75 mm
- 35 mm
- Pre-lubricated, preserved
- 500 m/s²
- If F<sub>comb</sub>◡<gt/> 2.8 • F<sub>pr</sub> : a<sub>max</sub> = 50 m/s<sup>2</sup>
- 5 m/s
- -10 °C ... +80 °C
- 100 °C admissible for short time. For operation at negative temperatures, please consult us.
- 0.002 ... 0.003
- Without friction of seal
- 1.34 kg
- 45600 N
- Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
- 36200 N
- Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
- 50200 N
- 1700 Nm
- Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
- 1350 Nm
- Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
- 1870 Nm
- 620 Nm
- Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
- 490 Nm
- Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
- 680 Nm
- 80 mm
- 120 mm
- 60 mm
- 69 mm
- 25.5 mm
- 105 mm
- 76.5 mm
- 107 mm
- 60 mm
- 35 mm
- 83.5 mm
- 4.9 mm
- 11.3 mm
- 35 mm
- 29.75
- 23.55 mm
- 15.4 mm
- 15.5 mm
- 5.2 mm
- 5.2 mm
- 9.35 mm
- 7.05 mm
- 14.4 mm
- ± 0.5
- 6.7 mm
- M8
- 7 mm
- M3x2 mm
- M3
- + 4.5
- 2 mm
- 10 mm
- 7.5 mm
- ...
- ...
